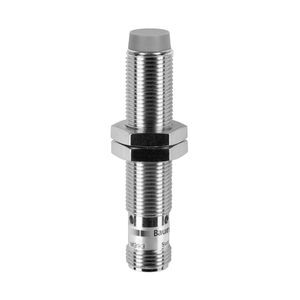

The Baumer IFRM 12P33T1/PL 11016680 is a non-flush, cylindrical threaded proximity sensor designed for outdoor use, featuring a nominal sensing distance of 6 mm and a hysteresis range of 2 to 15% of Sr. It includes a red LED output indicator and operates at a switching frequency of 2 kHz. The sensor supports a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 10 mA. It utilizes a PNP break function (NC) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. This model is equipped with short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, and the sensing face is constructed from PBT. It has a dimension of 12 mm in diameter and a housing length of 50 mm, connected via a 2-meter PUR cable. The maximum tightening torque is 15 Nm, with 10 Nm at the front. It operates within a temperature range of -40 to +80 °C and meets IP 67 protection class standards.
- Mounting type:
- Non-flush
- Special type:
- Outdoor design
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Cable PUR 3 x 0,25, 2 m
- Tightening torque max.:
- 15 Nm (Front: 10 Nm)
- Operating temperature:
- -40 +80 °C
- Protection class:
- IP 67
