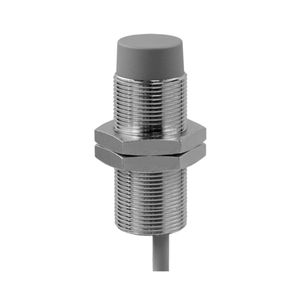

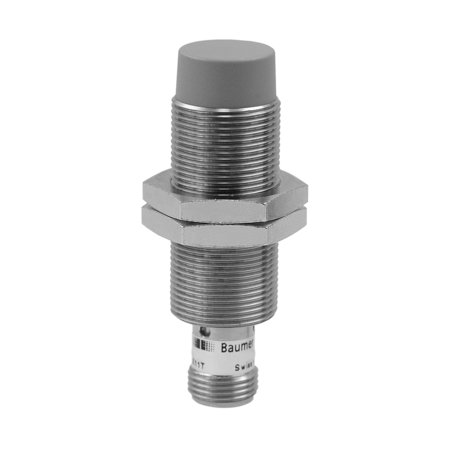

Baumer IFRM 18P13T1/S14L 11016653 is a non-flush, cylindrical threaded proximity sensor designed for outdoor use, featuring a nominal sensing distance of 12 mm and a hysteresis of 2 to 15% of Sr. It includes a red LED output indicator and operates at a switching frequency of 500 Hz. The sensor supports a voltage supply range of 6 to 30 VDC, with a maximum no-load current consumption of 10 mA. It offers a PNP make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. Equipped with short circuit and reverse polarity protection, the sensor is constructed with a PBT sensing face and a brass nickel-plated housing, measuring 18 mm in diameter and 60 mm in length. It connects via an M12 connector and requires a maximum tightening torque of 40 Nm (28 Nm front). The operating temperature range is -40 to +80 °C, and it is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Non-flush
- Special type:
- Outdoor design
- Nominal sensing distance Sn:
- 12 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm (Front: 28 Nm)
- Operating temperature:
- -40 +80 °C
- Protection class:
- IP 67
