Baumer IFRM 18P33T1/S14L 11016654
Baumer
$169.90

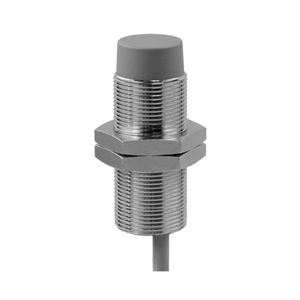

Baumer IFRM 18P33T1/S14L 11016654 is a non-flush, cylindrical threaded proximity sensor designed for outdoor use, featuring a nominal sensing distance of 12 mm and a hysteresis of 2 to 15% of Sr. It includes a red LED output indicator and operates at a switching frequency of 500 Hz. The sensor supports a voltage supply range of 6 to 30 VDC, with a maximum no-load current consumption of 10 mA. It utilizes a PNP break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. This model is equipped with short circuit and reverse polarity protection. The sensing face is made of PBT, while the housing is brass nickel-plated, measuring 18 mm in diameter and 60 mm in length. It connects via an M12 connector and requires a maximum tightening torque of 40 Nm (28 Nm front). The operating temperature range is -40 to +80 °C, and it is rated IP 67 for protection against dust and water ingress. [View Datasheet](https://www.baumer.com/medias/__secure__/Baumer_IFRM-18P33T1-S14L_EN_20221109_DS.pdf?mediaPK=9056043368478).
- Mounting type:
- Non-flush
- Special type:
- Outdoor design
- Nominal sensing distance Sn:
- 12 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm (Front: 28 Nm)
- Operating temperature:
- -40 +80 °C
- Protection class:
- IP 67
- Datasheet:
- View
