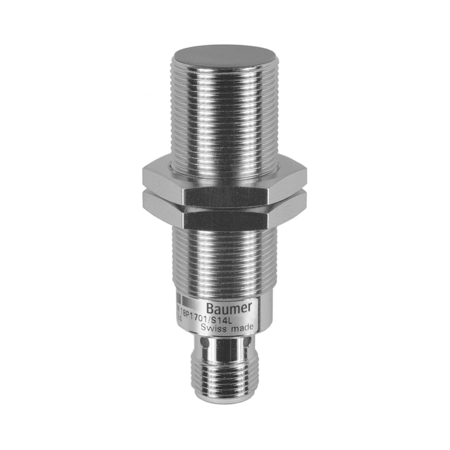

Baumer IFRM 18P37M1/S14L (11013674) | PNP NC Outdoor Inductive Sensor, 18mm Flush Mount, 10mm Range, M12 Connector, -40 to +80°C, IP67
Baumer
The Baumer IFRM 18P37M1/S14L 11013674 is a flush-mounted, cylindrical threaded proximity sensor designed for outdoor use. It features a nominal sensing distance of 10 mm with a hysteresis of 2 to 15% of Sr. Equipped with a red LED output indicator, it operates at a switching frequency of 400 Hz. The sensor supports a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 24 mA when unloaded. It includes a PNP break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. The sensor offers short circuit and reverse polarity protection. Constructed with a PBT sensing face and a brass nickel-plated housing, it measures 18 mm in diameter and 60 mm in length. It connects via an M12 connector and can be tightened with a maximum torque of 40 Nm. Operating temperatures range from -40 to +80 °C, and it is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Special type:
- Outdoor design
- Nominal sensing distance Sn:
- 10 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 400 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 24 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm (Front: 28 Nm)
- Operating temperature:
- -40 +80 °C
- Protection class:
- IP 67
