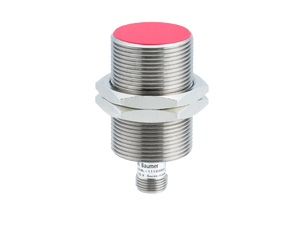

The Baumer IGYX 30N37B3/L is a flush-mounted inductive sensor with a nominal sensing distance of 15 mm and an assured sensing distance of 12 mm. It features a temperature drift of ±10% of Sr within a temperature range of 0 to +60 °C and a hysteresis of 3 to 20% of Sr. The sensor is equipped with a red LED output indicator and operates at a switching frequency of 400 Hz. It requires a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 15 mA with no load. The output circuit is an NPN break function (NC) with a voltage drop of less than 2.5 VDC and an output current of 200 mA. It includes short circuit and reverse polarity protection. The sensor's design is cylindrical threaded, made with a PBT red sensing face and a brass nickel-plated housing. Dimensions include a 30 mm diameter and a 50 mm housing length, with a 2 m cable connection. It can withstand a tightening torque of up to 60 Nm and operates within a temperature range of -25 to +75 °C. The sensor is rated IP 67 for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 15 mm
- Assured sensing distance Sa:
- 12 mm
- Temperature drift:
- ± 10 % of Sr (0 ... +60 °C)
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 400 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2.5 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT, red
- Housing material:
- Brass nickel plated
- Dimension:
- 30 mm
- Housing length:
- 50 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 60 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
