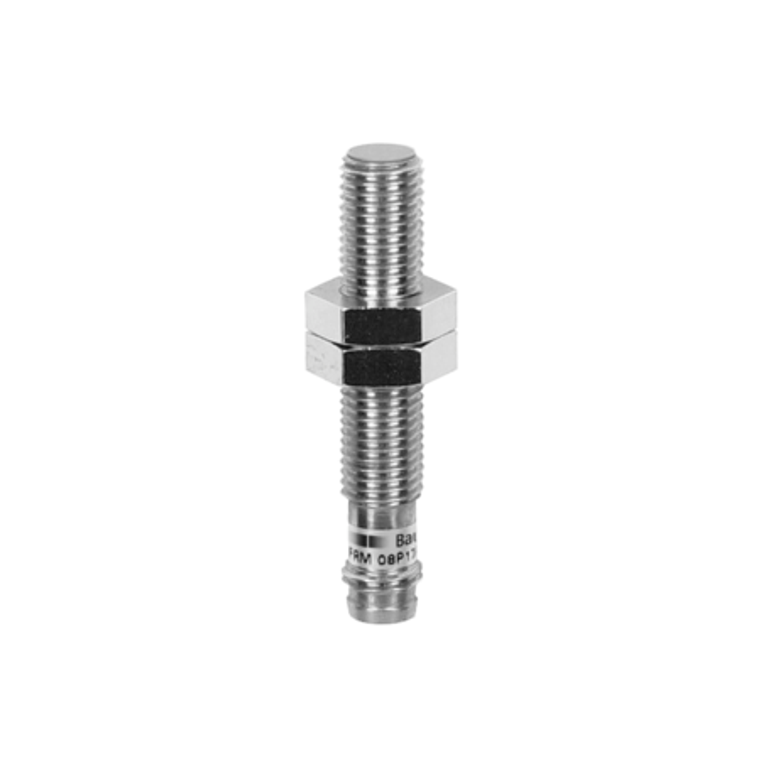

Baumer IR08.D03S-Q46.IA1Z.7SL 11141034 is a quasi-flush mounted inductive sensor with a measuring distance of 0 to 3 mm and a high resolution of less than 0.001 mm (static) and less than 0.01 mm (dynamic). It features a repeat accuracy of 0.02 mm and a linearity error ranging from ±120 µm to ±360 µm. The sensor is designed to handle temperature drifts of ±4% to ±6% and has a quick response time of less than 0.5 ms. Operating on a voltage supply range of 6 to 36 VDC and a maximum current consumption of 12 mA, it includes an analog output circuit of 0 to 10 mA. The load resistance varies with voltage supply, and it offers short circuit and reverse polarity protection. The cylindrical threaded design uses PBT for the sensing face and stainless steel for the housing, measuring 8 mm in diameter and 46 mm in length. It connects via an M8 connector and can withstand operating temperatures from -10 to +70 °C. The sensor is IP 67 rated for protection against dust and water ingress.
- Mounting type:
- Quasi-flush
- Measuring distance Sd:
- 0 3 mm
- Resolution:
- < 0.001 mm (stat.) < 0.01 mm (dynam.)
- Repeat accuracy:
- 0.02 mm
- Linearity error:
- ± 120 µm (S = 0,75 ... 2,25 mm) ± 360 µm (S = 0 ... 3 mm)
- Temperature drift:
- ± 4 % (Full Scale: 0 ... +60 °C) ± 6 % (Full Scale: -10 ... +70 °C)
- Response time (factory characteristic):
- < 0.5 ms
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- Analog 0 ... 10 mA
- Load resistance:
- < 100 Ohm/V * Vs - 400 Ohm > 500 Ohm (Vs = 30 36 VDC)
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 46 mm
- Connection types:
- Connector M8
- Tightening torque max.:
- 10 Nm (A: 7 Nm)
- Operating temperature:
- -10 +70 °C
- Protection class:
- IP 67
