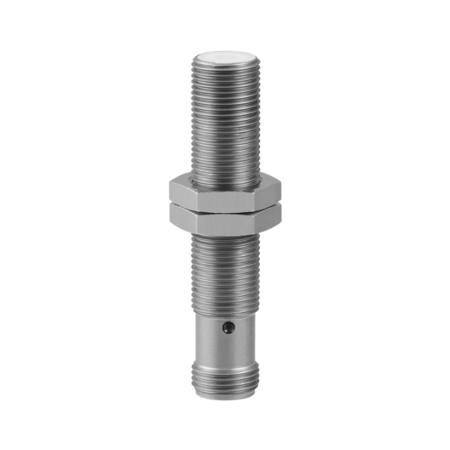

Baumer IR12.D03K-F60.IA1E.7FO/B015 11158152
Baumer
The Baumer IR12.D03K-F60.IA1E.7FO/B015 11158152 is a high-sensitivity, flush-mounted inductive sensor designed for precise distance measurement. It features a measuring range of 2.75 to 3 mm with exceptional sensitivity of 64 mA/mm and boasts a high resolution of less than 0.00025 mm statically and less than 0.0005 mm dynamically. The sensor ensures repeat accuracy of 0.001 mm and has a linearity error of ± 5 µm. It is equipped with external teach-in capabilities for easy configuration and a one-point analog teach with factory reset. The sensor's performance remains stable across temperature variations with a drift of ± 4% at temperatures from +10 to +30 °C and ± 12% from -10 to +60 °C. It features a quick response time of less than 3 ms, operates on a voltage supply range of 8 to 30 VDC, and includes safety features such as short circuit and reverse polarity protection. The cylindrical threaded design with a ceramic sensing face and nickel-plated steel housing ensures durability and compliance with IP 67 protection class for operation in harsh environments. The sensor connects via an M12 connector and is designed for operating temperatures ranging from -10 to +60 °C.
- Mounting type:
- Flush
- Special type:
- Linearized High sensitivity
- Measuring distance Sd:
- 2.75 3 mm
- Sensitivity:
- 64 mA/mm (Range: 0,25 mm)
- Resolution:
- < 0.00025 mm (stat.) < 0.0005 mm (dynam.)
- Repeat accuracy:
- 0.001 mm
- Adjustment:
- External Teach-in
- Teach:
- 1-point analog, factory reset
- Linearity error:
- ± 5 µm
- Temperature drift:
- ± 4 % (Full Scale: +10 ... +30 °C) ± 12 % (Full Scale: -10 ... +60 °C)
- Teach-Feedback:
- LED yellow
- Response time (factory characteristic):
- < 3 ms
- Voltage supply range +Vs:
- 8 30 VDC
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- Analog 4 ... 20 mA
- Load resistance:
- < 25 Ohm/V * Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- Ceramic
- Housing material:
- Steel nickel plated
- Dimension:
- 12 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 15 Nm
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
