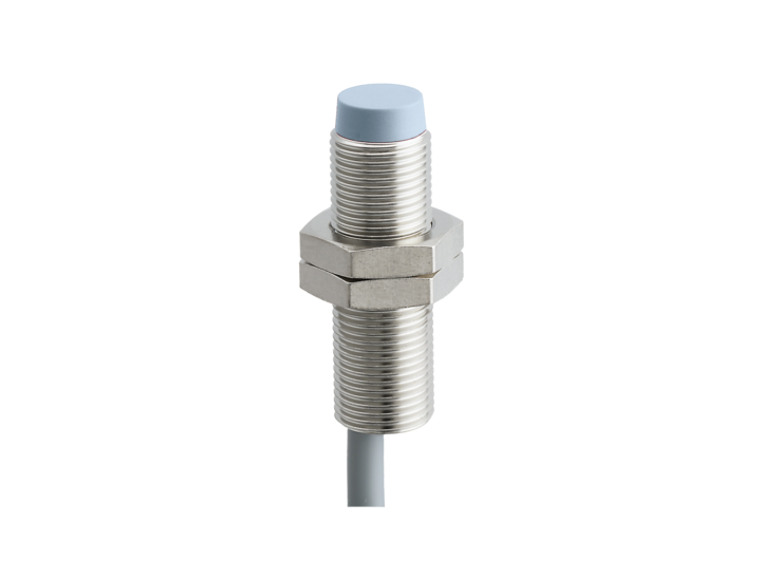

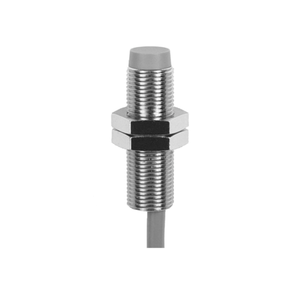

The Baumer IR12.P10S-N40.PO1Z.7BLV is a non-flush, cylindrical threaded proximity sensor with an enhanced distance sensing capability, thanks to its GammaProx technology. It offers a nominal sensing distance of 10 mm and features a temperature drift of ±10% within 0 to +60°C and ±15% from -25 to +75°C. The sensor's hysteresis ranges from 3 to 20% of Sr, and it includes a red LED output indicator. It is designed to work effectively with different materials, having a correction factor of 100% for mild steel, 75% for stainless steel, and 50% for aluminum. The switching frequency is set at 1.5 kHz, and it operates within a voltage supply range of 6 to 36 VDC, with a maximum current consumption of 10 mA when no load is present. The output circuit is a PNP make function (NO), with a maximum output current of 100 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, and the sensing face is constructed from PBT. It measures 12 mm in diameter and 40 mm in length, and it connects via a flylead connector M8 3 pin, with a length of 200 mm. The maximum tightening torque is 15 Nm. This sensor operates within a temperature range of -25 to +75°C and is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Non-flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 10 mm
- Temperature drift:
- ± 10 % (0 ... +60 °C) ± 15 % (-25 ... +75 °C)
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 75 %, aluminum 50 %
- Switching frequency:
- 1.5 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 40 mm
- Connection types:
- Flylead connector M8 3 pin, L=200 mm
- Tightening torque max.:
- 15 Nm (A: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
