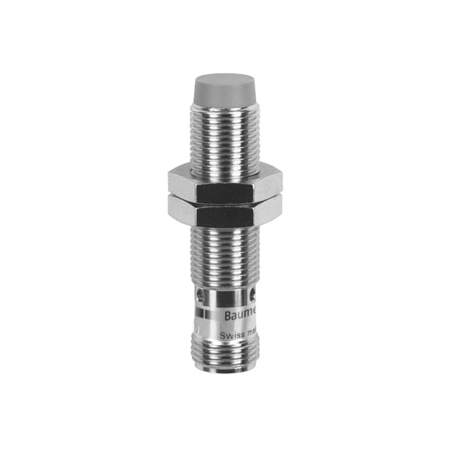

Baumer IR12.P10S-N50.PC1Z.7BO 11148654
Baumer
$140.70

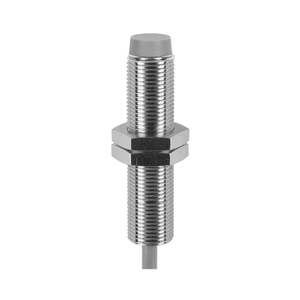

Baumer IR12.P10S-N50.PC1Z.7BO 11148654 is a non-flush, cylindrical threaded proximity sensor with an enhanced distance feature from the GammaProx series. It offers a nominal sensing distance of 10 mm and operates with a temperature drift of ±10% (0 to +60 °C) and ±15% (-25 to +75 °C). The sensor has a hysteresis range of 3 to 20% of Sr and includes a three-port LED red output indicator. It is designed to work with various materials, having a correction factor of 100% for mild steel, 75% for stainless steel, and 50% for aluminum. The switching frequency is 1.5 kHz, and it requires a voltage supply range of 6 to 36 VDC with a maximum current consumption of 10 mA at no load. The output circuit is a PNP break function (NC) with a voltage drop of less than 2 VDC and an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated, with a PBT sensing face, and it measures 12 mm in diameter and 50 mm in length. It connects via an M12 connector and has a maximum tightening torque of 15 Nm. Suitable for operating temperatures between -25 to +75 °C, it is IP 67 rated for protection against dust and water ingress.
- Mounting type:
- Non-flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 10 mm
- Temperature drift:
- ± 10 % (0 ... +60 °C) ± 15 % (-25 ... +75 °C)
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 75 %, aluminum 50 %
- Switching frequency:
- 1.5 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 15 Nm (A: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
