Baumer IR12V.P04S-F55.NO1Z.9BDU/0035_E011 11177636
Baumer
$146.80

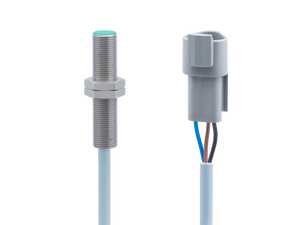

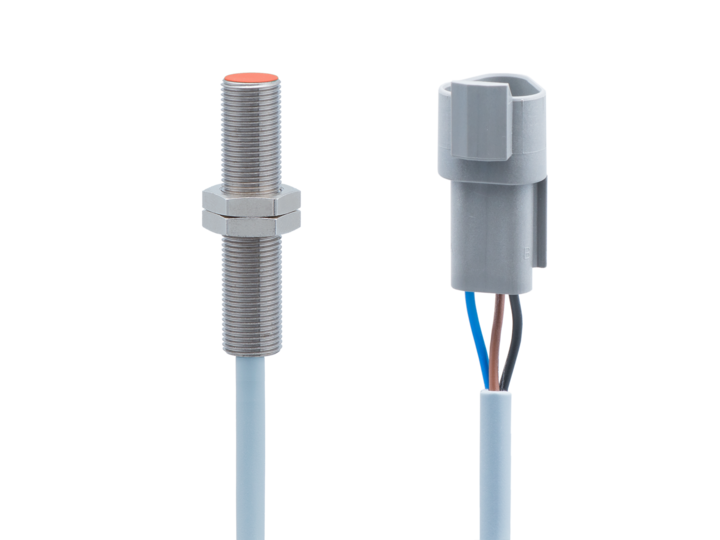

The Baumer IR12V.P04S-F55.NO1Z.9BDU/0035_E011 11177636 is a flush-mounted, cylindrical threaded proximity sensor designed for vehicle applications. It features a nominal sensing distance of 4 mm with a hysteresis range of 3 to 10% of Sr. The sensor is equipped with a red LED output indicator and operates with a switching frequency of 2 kHz. It supports a voltage supply range of 7 to 48 VDC and has a maximum current consumption of 10 mA at no load. The output circuit is an NPN make function (NO) with a maximum output current of 200 mA. Key protections include short circuit and reverse polarity protection. The sensor is highly durable, made from brass nickel-plated housing and PBT sensing face, and offers robust environmental resistance with IP 68 and IP 69K ratings for water and dust ingress. It is also compliant with multiple standards including EN 60947-5-2:2007 and ISO 13766:2006, ensuring reliability in electromagnetic and emission challenges. The sensor connects via a Flylead connector DT04-3P 3 pin, with a cable length of 350 mm. Operating temperatures range from -40 to +85 °C, making it suitable for harsh environments.
- Mounting type:
- Flush
- Special type:
- Vehicle
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 3 10 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- EN 60947-5-2:2007, Sec 8.6 EN 13309:2010 1) 3) EN ISO 14982:2009 1) 2) ISO 13766:2006 1)
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 7 48 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Off-Highway Electromagnetic immunity:
- ISO 11452-4: 200mA ISO 11452-2: 100V/m Based on UN / ECE R10 Rev 5 ch. 6.8 (no ECE type approval available)
- Off-Highway Emission:
- EN 55011 Based on UN / ECE R10 Rev 5 ch. 6.5, 6.6 (no ECE type approval available)
- Conducted inteference:
- ISO 7637-2, ISO 16750-2, details see section "Test pulses"
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 55 mm
- Connection types:
- Flylead connector DT04-3P 3 pin, L=350 mm
- Tightening torque max.:
- 15 Nm (A: 10,5 Nm, B: 10,5 Nm)
- Operating temperature:
- -40 +85 °C
- Protection class:
- IP 68 (sensing face/sensor) IP 68 (1,5 m, 24 h) IP 69K (sensing face)
