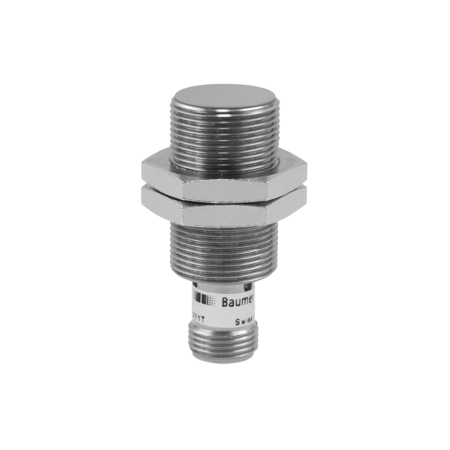

Baumer IR18.P12S-F45.NC1Z.7BO 11149112
Baumer
$148.90

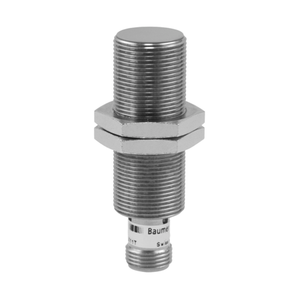

The Baumer IR18.P12S-F45.NC1Z.7BO 11149112 is a flush-mounted, cylindrical threaded proximity sensor with an enhanced sensing distance. It features a nominal sensing distance of 12 mm and operates with a temperature drift of ±10%. The sensor has a hysteresis range of 3 to 20% of Sr and includes a three-port LED red output indicator. It is designed to work with various materials, offering correction factors of 100% for mild steel, 70% for stainless steel, and 40% for aluminum. The switching frequency is 400 Hz, and it operates within a voltage supply range of 6 to 36 VDC, with a maximum current consumption of 10 mA when no load is present. The output circuit is an NPN break function (NC) with a voltage drop of less than 2 VDC and an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, and the sensing face is PBT. It measures 18 mm in diameter and 45 mm in housing length, with a connector type M12 and a maximum tightening torque of 40 Nm. It can operate in temperatures ranging from -25 to +75 °C and is rated at protection class IP 67.
- Mounting type:
- Flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 12 mm
- Temperature drift:
- ± 10 %
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 70 %, aluminum 40 %
- Switching frequency:
- 400 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 45 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
