Description

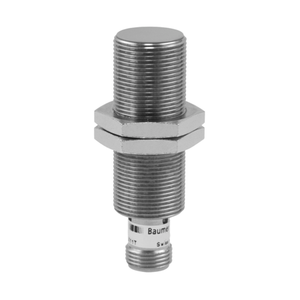

Baumer IR18.P12S-F45.NO1Z.7BO 11148847 is a flush-mounted, cylindrical threaded proximity sensor with an enhanced sensing distance of 12 mm. It features a temperature drift of ±10%, hysteresis of 3-20% of Sr, and a switching frequency of 400 Hz. The sensor operates on a voltage supply range of 6-36 VDC with a maximum current consumption of 10 mA. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current of 100 mA. The sensor is equipped with short circuit and reverse polarity protection. The sensing face is made of PBT, and the housing is brass nickel-plated, measuring 18 mm in diameter and 45 mm in length. It connects via an M12 connector and has a maximum tightening torque of 40 Nm. The operating temperature range is -25 to +75 °C, and it is rated IP 67 for protection. The sensor's output status is indicated by a 3-port red LED. Correction factors include 100% for mild steel, 70% for stainless steel, and 40% for aluminum.
