Baumer IR18V.P08S-F50.PO1Z.9BDU/0035_E011 11177440

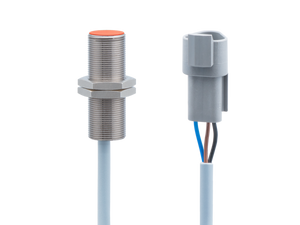

The Baumer IR18V.P08S-F50.PO1Z.9BDU/0035_E011 11177440 is a flush-mounted, cylindrical threaded proximity sensor designed for vehicle applications. It features a nominal sensing distance of 8 mm with a hysteresis of 3 to 10% of Sr. The sensor is equipped with a red LED output indicator and operates with a PNP make function (NO) output circuit. It supports a switching frequency of 800 Hz and can handle a voltage supply range of 7 to 48 VDC, with a maximum current consumption of 10 mA when no load is present. The output current capacity is 200 mA, and the sensor includes short circuit and reverse polarity protection. It is designed to withstand harsh environments with an operating temperature range of -40 to +85 °C and is rated IP68 for dust and water resistance, and IP69K for high-pressure water resistance. The sensor's housing is made of brass nickel-plated material, and it uses a flylead connector DT04-3P 3 pin for connections. It also meets several international standards for electromagnetic immunity and emissions, ensuring reliable performance in off-highway applications.
- Mounting type:
- Flush
- Special type:
- Vehicle
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 10 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- EN 60947-5-2:2007, Sec 8.6 EN 13309:2010 1) 3) EN ISO 14982:2009 1) 2) ISO 13766:2006 1)
- Switching frequency:
- 800 Hz
- Voltage supply range +Vs:
- 7 48 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Off-Highway Electromagnetic immunity:
- ISO 11452-4: 200mA ISO 11452-2: 100V/m Based on UN / ECE R10 Rev 5 ch. 6.8 (no ECE type approval available)
- Off-Highway Emission:
- EN 55011 Based on UN / ECE R10 Rev 5 ch. 6.5, 6.6 (no ECE type approval available)
- Conducted inteference:
- ISO 7637-2, ISO 16750-2, details see section "Test pulses"
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 50 mm
- Connection types:
- Flylead connector DT04-3P 3 pin, L=350 mm
- Tightening torque max.:
- 40 Nm (A: 28 Nm, B: 28 Nm)
- Operating temperature:
- -40 +85 °C
- Protection class:
- IP 68 (sensing face/sensor) IP 68 (1,5 m, 24 h) IP 69K (sensing face)
- Datasheet:
- View
