Baumer IR30.P24S-N35.NV1Z.7BCV 11174032
Baumer

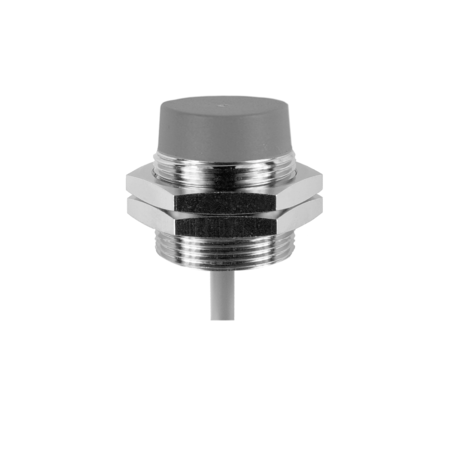

Baumer IR30.P24S-N35.NV1Z.7BCV 11174032 is a non-flush, cylindrical threaded proximity sensor with an enhanced distance feature from the GammaProx series. It offers a nominal sensing distance of 24 mm and operates with a temperature drift of ±10%. The sensor has a hysteresis range of 3 to 20% of Sr and includes a red LED output indicator. It is designed to work with various materials, having correction factors of 100% for mild steel, 70% for stainless steel, and 50% for aluminum. The switching frequency is 500 Hz, and it supports a voltage supply range of 6 to 36 VDC with a maximum no-load current consumption of 10 mA. The output circuit is NPN complementary (NO/NC), and the sensor can handle an output current of up to 200 mA. It features short circuit and reverse polarity protection, with a voltage drop of less than 2 VDC. The sensor's housing is made of brass nickel-plated material, and the sensing face is PBT. It measures 30 mm in diameter and 35 mm in housing length, and it connects via a 2-meter cable. The maximum tightening torque is 140 Nm, and it operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Non-flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 24 mm
- Temperature drift:
- ± 10 %
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 70 %, aluminum 50 %
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN complementary (NO / NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 30 mm
- Housing length:
- 35 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 140 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
