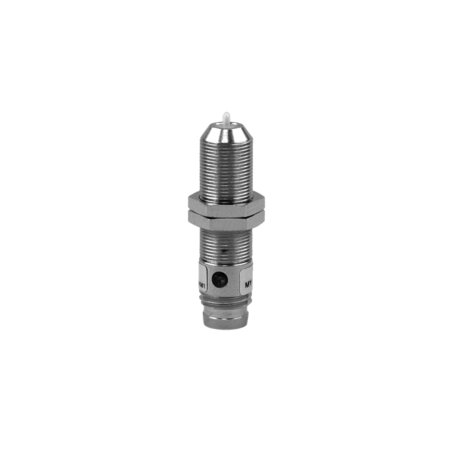

Baumer MY-COM A30/S35 10241610
Baumer
The Baumer MY-COM A30/S35 10241610 is a high-precision mechanical contact sensor with a repeat accuracy of 0.001 mm and an activating force of 30 cN. It features a frontal direction of approach and a mechanical pre-run/overrun of approximately -/1.5 mm. This sensor operates with a maximum DC voltage of 15 VDC and a maximum AC voltage of 24 VAC, supporting switch currents up to 2 mA for DC and 50 mA for AC. The output circuit is a break function (NC) mechanical type. The activating pin is made from zirconium oxide ZrO2, and the housing is constructed from brass nickel-plated material. It has a cylindrical threaded design with dimensions of 8 mm in diameter and 30 mm in housing length. The sensor includes a connector M8 for connections and operates within a temperature range of -20 to +75 °C. It is rated with a protection class of IP 50. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/My_Com_A30_S35_web_EN.pdf?mediaPK=8803378135070).
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 30 cN
- Mech. pre-run / overrun:
- - / 1,5 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal
- DC voltage max.:
- 15 VDC
- Switch. current DC max.:
- 2 mA
- AC voltage max.:
- 24 VAC
- Switch. current AC max.:
- 50 mA
- Output circuit:
- Break function (NC) mechanical
- Activating pin:
- Zirconium oxide ZrO2
- Housing material:
- Brass nickel plated
- Dimension:
- 8 mm
- Design:
- Cylindrical threaded
- Housing length:
- 30 mm
- Connection types:
- Connector M8
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 50
- Datasheet:
- View
