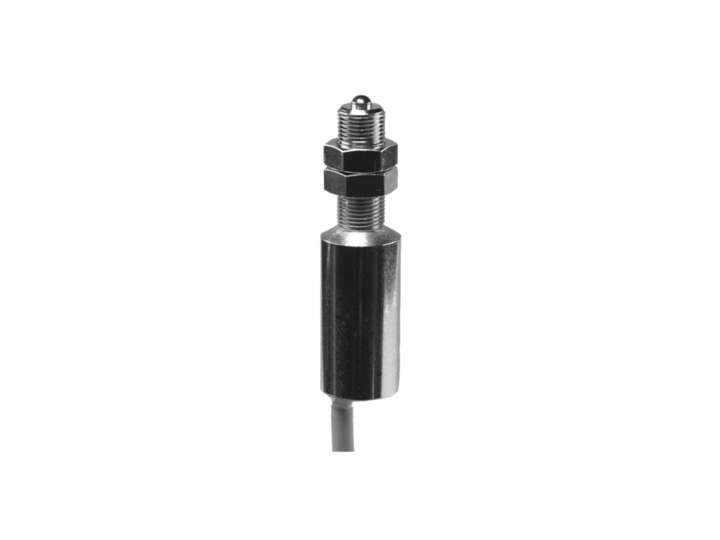

Baumer MY-COM E75/200 10223720
Baumer
The Baumer MY-COM E75/200 10223720 is a high-precision mechanical limit switch featuring a repeat accuracy of 0.001 mm and an activating force of 75 cN. It is designed for both frontal and lateral approaches with a mechanical pre-run/overrun of approximately 0.8 to 1.5 mm. This model operates on a maximum of 15 VDC or 24 VAC, with switch currents of up to 2 mA for DC and 50 mA for AC. The output circuit is a break function (NC) mechanical type. The activating pin is made from hardened steel, and the housing is crafted from brass nickel-plated material, ensuring durability and resistance. The cylindrical threaded design has a dimension of 6 mm and a housing length of 36 mm. It includes a 2-meter cable for connectivity and operates within a temperature range of -20 to +75 °C. The device is protected by an IP 50 class, making it suitable for various industrial applications. For more detailed information, refer to the provided datasheet.
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 75 cN
- Mech. pre-run / overrun:
- - / 0,8 ... 1,5 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal and lateral approach
- DC voltage max.:
- 15 VDC
- Switch. current DC max.:
- 2 mA
- AC voltage max.:
- 24 VAC
- Switch. current AC max.:
- 50 mA
- Output circuit:
- Break function (NC) mechanical
- Activating pin:
- Hardened steel
- Housing material:
- Brass nickel plated
- Dimension:
- 6 mm
- Design:
- Cylindrical threaded
- Housing length:
- 36 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 50
- Datasheet:
- View
