Baumer

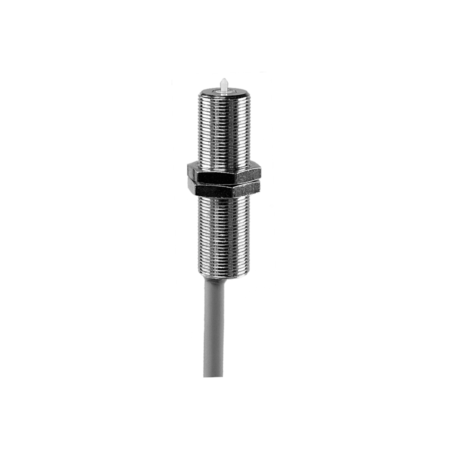

Baumer MY-COM F100/80 10220913

(No reviews yet) Write a Review
SKU:
10220913
MPN:
10220913
Condition:
New
Repeat accuracy:
0.001 mm
Activating force:
100 cN
Mech. pre-run / overrun:
- / 1,5 mm approx.
Measurement type:
Contact with medium
Direction of approach:
Frontal
DC voltage max.:
15 VDC
Switch. current DC max.:
2 mA
AC voltage max.:
24 VAC
Switch. current AC max.:
50 mA
Output circuit:
Break function (NC) mechanical
Activating pin:
Zirconium oxide ZrO2
Housing material:
Brass nickel plated
Dimension:
8 mm
Design:
Cylindrical threaded
Housing length:
28 mm
Connection types:
Cable, 80 cm
Operating temperature:
-20 … +75 °C
Protection class:
IP 50
Datasheet:
View
$334.00

Description

The Baumer MY-COM F100/80 10220913 is a high-precision mechanical contact sensor featuring a repeat accuracy of 0.001 mm and an activating force of 100 cN. It has a mechanical pre-run/overrun of approximately -/1.5 mm and operates with a frontal direction of approach. This sensor supports a maximum DC voltage of 15 VDC with a switching current of up to 2 mA, and a maximum AC voltage of 24 VAC with a switching current of up to 50 mA. The output circuit is a break function (NC) mechanical type. The activating pin is made from zirconium oxide ZrO2, and the housing is crafted from brass nickel-plated material. It features a cylindrical threaded design with a dimension of 8 mm and a housing length of 28 mm. The sensor includes an 80 cm cable for connections and operates within a temperature range of -20 to +75 °C. It is rated with a protection class of IP 50. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/My_Com_F100_80_web_EN.pdf?mediaPK=8799750094878).
