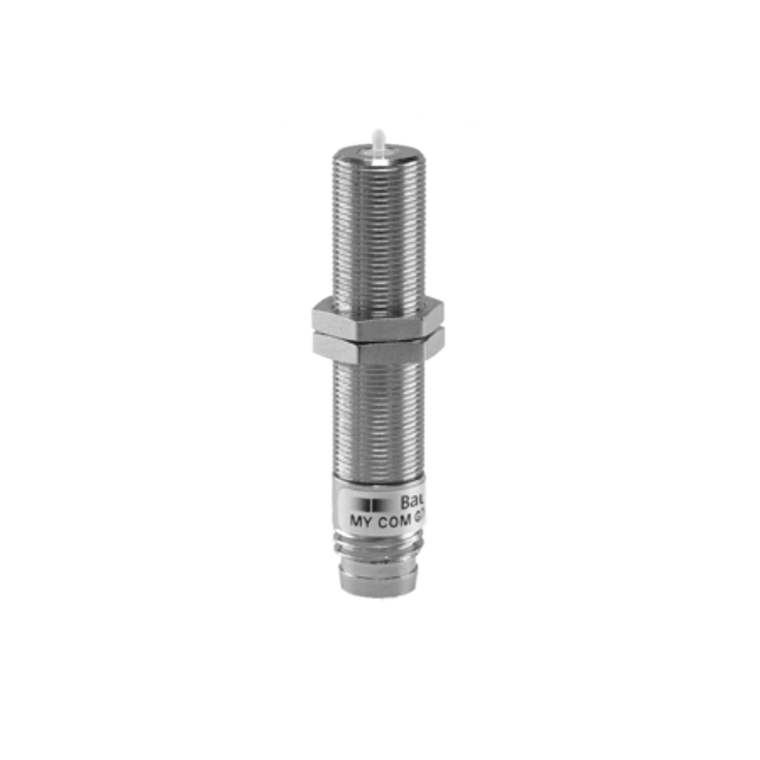

Baumer MY-COM G75N/S35L 10239283
Baumer
The Baumer MY-COM G75N/S35L 10239283 is a high-precision sensor with a repeat accuracy of 0.001 mm and an activating force of 75 cN. It features a mechanical pre-run/overrun of approximately -/1.5 mm and operates through contact with the medium. The sensor has a frontal direction of approach and includes a red LED output indicator. It supports a voltage supply range of 5 to 36 VDC and a maximum load current of 50 mA at 24 VDC. The output circuit is an NPN make function (NO) with a minimum load resistance of 480 Ohm. The activating pin is made of zirconium oxide ZrO2, and the housing is crafted from brass nickel-plated material. This cylindrical threaded sensor has a dimension of 8 mm and a housing length of 38 mm. It connects via an M8 connector and operates within a temperature range of -20 to +75 °C. The sensor is rated at IP 50 for protection. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/My_Com_G75N_S35L_web_EN.pdf?mediaPK=8799756451870).
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 75 cN
- Mech. pre-run / overrun:
- - / 1,5 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal
- Output indicator:
- LED red
- Voltage supply range +Vs:
- 5 36 VDC
- Load current max. at 24 VDC:
- 50 mA
- Output circuit:
- NPN make function (NO)
- Load resistance min.:
- 480 Ohm
- Activating pin:
- Zirconium oxide ZrO2
- Housing material:
- Brass nickel plated
- Dimension:
- 8 mm
- Design:
- Cylindrical threaded
- Housing length:
- 38 mm
- Connection types:
- Connector M8
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 50
- Datasheet:
- View
