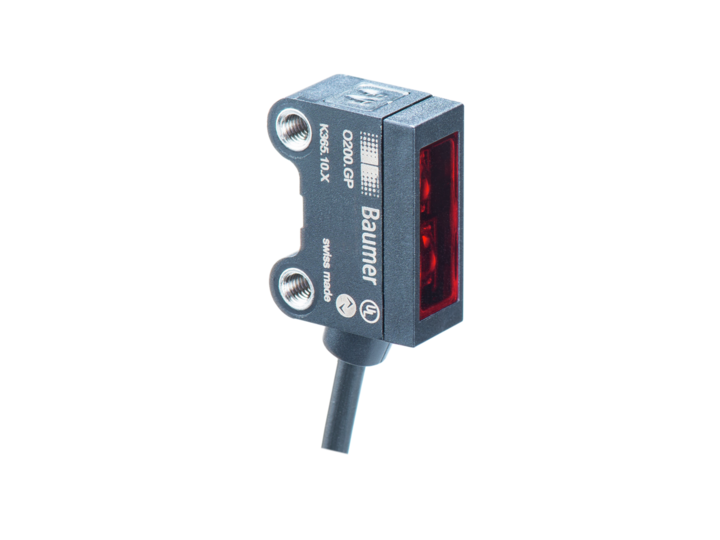

Baumer O200.GP-PV1T.72NV/E022_H006 11230692
Baumer
The Baumer O200.GP-PV1T.72NV/E022_H006 11230692 is a high-performance sensor with background suppression and a line beam version. It offers a sensing distance of 20 to 120 mm and a sensing range of 3 to 132 mm, capable of recognizing objects as small as 8 mm at 60 mm. It features a pulsed PinPoint LED light source with a wavelength of 644 nm and a quick response time of ? 2 ms. The sensor is equipped with LED indicators for power and alignment, and uses qTeach for easy sensing distance adjustment. It includes protection against short circuits and reverse polarity, operates within a voltage supply range of 10 to 30 VDC, and has an IP67 protection class, making it suitable for harsh environments. The sensor's compact, rectangular design with dimensions of 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, along with threaded sleeves M3 for mechanical mounting, makes it versatile for various applications. The connection is facilitated by a Flylead connector M8 4 pin with a 200 mm PVC cable.
- Type:
- Background suppression
- Version:
- Line beam
- Sensing distance Tw:
- 20 120 mm
- Sensing range Tb:
- 3 132 mm
- Smallest object recognizable typ.:
- 8 mm at 60 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Line
- Alignment optical axis:
- < 1,5°Light source=Pulsed PinPoint LED
- Wave length:
- 644 nm
- Response time / release time:
- ? 2 ms
- Jitter:
- ? 2 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA (@ 10 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -30 +50 °C
- Datasheet:
- View
