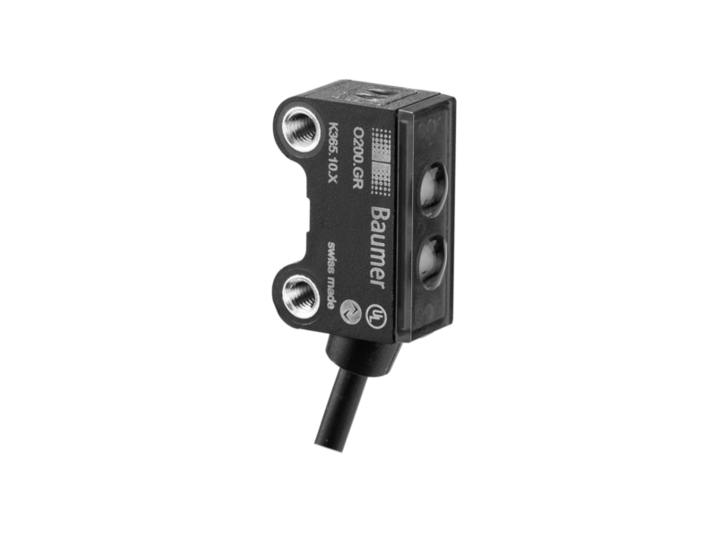

Baumer O200.GR-PV1T.72NV/E026_H006 11214893
Baumer
The Baumer O200.GR-PV1T.72NV/E026_H006 11214893 is a high-performance sensor with background suppression and a sensing distance ranging from 15 to 72 mm. It features a pulsed red LED light source with a wavelength of 644 nm and a rapid response time of less than 0.5 ms. This sensor can detect objects as small as 0.25 mm at 40 mm distance. It includes a green LED for power indication and a yellow LED for output status, with the ability to flash for alignment or lens soiling issues. The sensor offers a qTeach feature for easy sensing distance adjustment and is equipped with PNP complementary output circuit capable of handling up to 50 mA output current. It includes short circuit and reverse polarity protection, operates within a voltage supply range of 10 to 30 VDC, and consumes a maximum of 40 mA at 10 VDC. The compact, rectangular design measures 8 mm in width, 25.1 mm in height, and 14.1 mm in depth, with a threaded sleeve M3 for mechanical mounting and a flylead connector M8 4 pin for electrical connections. The housing is made of durable plastic (ASA, PMMA) with a PMMA front optics, ensuring IP 67 protection against dust and water ingress, suitable for operating temperatures from -25 to +50 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 15 72 mm
- Sensing range Tb:
- 7 80 mm
- Smallest object recognizable typ.:
- 0.25 mm at 40 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°Light source=Pulsed red LED
- Wave length:
- 644 nm
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA (@ 10 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 14.1 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -25 +50 °C
