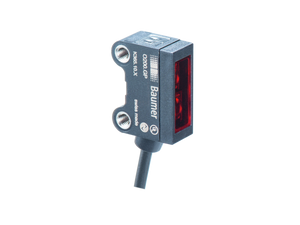

The Baumer O200.RL.T-GW1J.72NV/FIN1_H006 11230784 is a retro-reflective sensor designed for transparency object detection. It features a pulsed red laser diode light source with a wavelength of 680 nm and includes a polarization filter to minimize signal attenuation to 5%. The sensor has an actual range of 0.8 m and a nominal range of 1.2 m. It offers a quick response time/release time of less than 0.25 ms and a jitter of less than 0.06 ms. The device is equipped with LED indicators for power status and alignment, and it supports sensitivity adjustment through Teach-in and IO-Link. Safety features include short circuit and reverse polarity protection. The sensor operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 20 mA at 10 VDC. It is designed with a rectangular, plastic housing and uses threaded sleeves M3 for mechanical mounting. The sensor is suitable for operating temperatures from -20 to +50 °C and is rated IP 67 for protection against dust and water ingress. Connection is facilitated via a Flylead connector M8 4 pin.
- Type:
- Retro-reflective sensor
- Version:
- Transparency object detection
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 0.8 m
- Nominal range Sn:
- 1.2 m
- Polarization filter:
- Yes
- Minimal signal attenuation:
- 5 %
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- Teach-in and IO-Link
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 680 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°
- Response time / release time:
- < 0.25 ms
- Jitter:
- < 0.06 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 67
