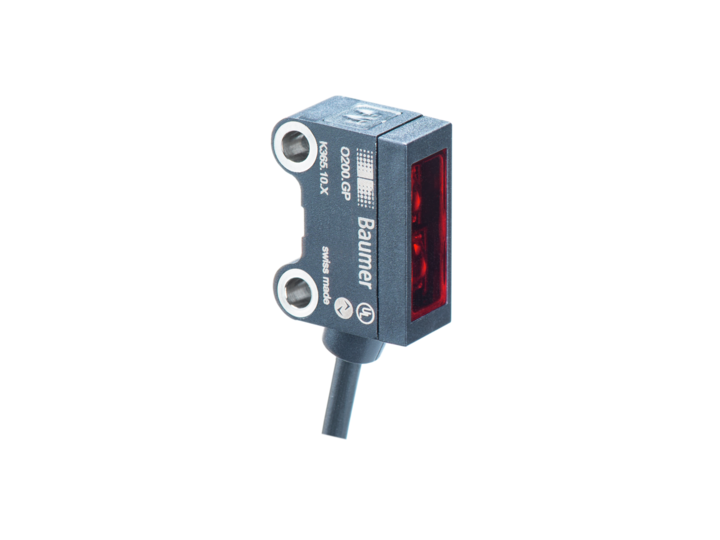

Baumer O200.ZR-GW2I.72CV/A014_E026 11231262
Baumer
The Baumer O200.ZR-GW2I.72CV/A014_E026 11231262 is an intensity difference sensor with an IO-Link dual channel version, capable of detecting objects within a sensing distance of 20 to 200 mm. It features a minimum object recognition size of typically 2 mm at 100 mm. The sensor is equipped with a green LED for power indication and a yellow LED output indicator, which flashes to signal alignment issues or a soiled lens. It utilizes a pulsed red LED light source with a wavelength of 644 nm and offers a quick response time of less than 0.4 ms. The sensor operates on a voltage supply range of 10 to 30 VDC and includes short circuit and reverse polarity protection. It has a push-pull output circuit with a maximum output current of 50 mA. The compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It is IP 67 rated for protection against dust and water ingress and operates within a temperature range of -25 to +50 °C. The sensor connects via a 4-pin, 2-meter PVC cable.
- Type:
- Intensity difference
- Version:
- IO-Link dual channel
- Sensing distance Tw:
- 20 200 mm
- Smallest object recognizable typ.:
- 2 mm at 100 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- IO-Link
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Point
- Alignment optical axis:
- < 1,5°Light source=Pulsed red LED
- Wave length:
- 644 nm
- Response time / release time:
- < 0.4 ms
- Jitter:
- < 0.21 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA (@ 10 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -25 +50 °C
