Description

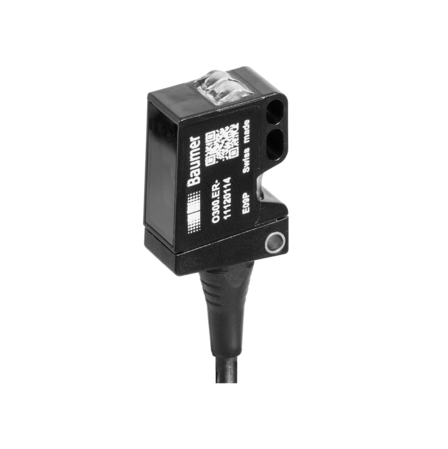

The Baumer O300.ER-GW1B.72CU 11167265 is a through beam sensor designed for precise object detection with an actual range of 10 m and a nominal range of 15 m. This receiver unit features a flashing light indicator for alignment or soiled lens detection, and LED indicators for power status and operation mode. It offers sensitivity adjustment via qTeach or remote control, and boasts a quick response time of less than 0.49 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 30 mA and a maximum of 40 mA. It includes push-pull output circuitry with light/dark operate functionality and supports an output current of 100 mA. Safety features include short circuit and reverse polarity protection. The compact, rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, with a durable plastic housing made from ASA and PMMA. It connects via a 4-pin, 2 m cable and operates within a temperature range of -25 to +60 °C. The sensor is IP 67 rated, ensuring protection against dust and water ingress.
