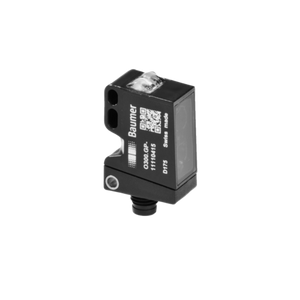

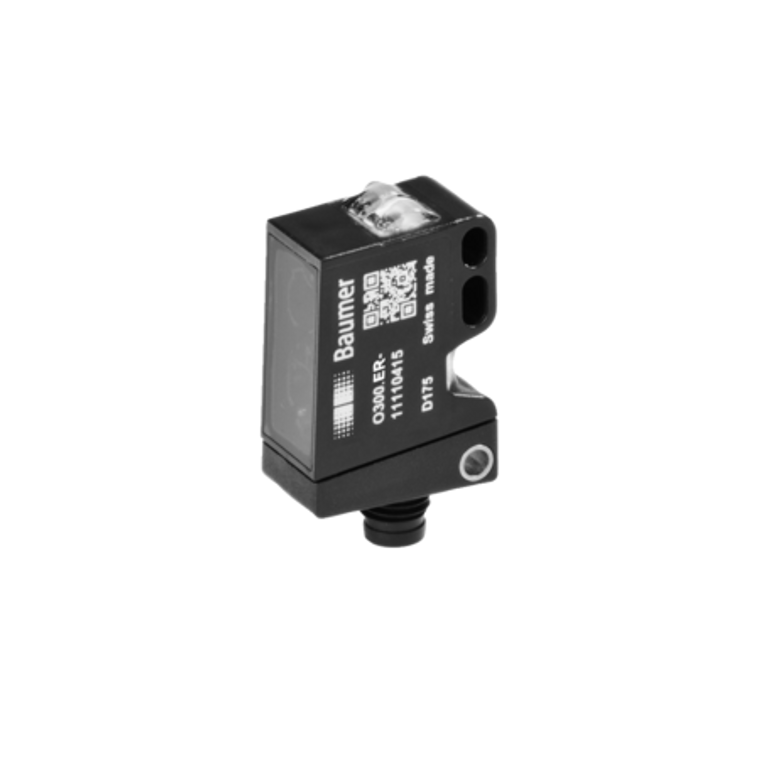

The Baumer O300.ER-NV1T.72N 11128055 is a through beam sensor designed for precise object detection with a receiver unit. It boasts an actual range of 10 meters and a nominal range of 15 meters. Key features include a flashing light indicator for alignment or soiled lens detection, LED indicators for power status (green) and operational status (yellow), and qTeach for easy sensitivity adjustment. The sensor has a fast response time of less than 0.49 ms and operates within a voltage supply range of 10 to 30 VDC. It supports both light and dark operating modes with NPN complementary output circuit and can handle an output current of up to 100 mA. The unit is equipped with short circuit and reverse polarity protection, ensuring durability and reliability. Its compact, rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, with a housing made from durable plastic (ASA, PMMA) and a PMMA front optics. It connects via an M8 4-pin connector and operates effectively in temperatures ranging from -25 to +60 °C. The sensor is IP 67 rated, indicating a high level of protection against dust and water ingress.
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 10 m
- Nominal range Sn:
- 15 m
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach
- Alignment optical axis:
- < 2°
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
