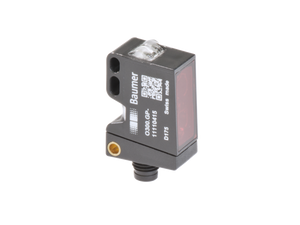

The Baumer O300.GP-GW1J.72N 11125023 is a high-performance sensor with background suppression and a sensing distance ranging from 30 to 200 mm. It features a pulsed PinPoint LED light source with a wavelength of 630 nm and a fast response time of less than 0.49 ms. The sensor is equipped with both teach-in and IO-Link options for easy distance adjustment and offers a green LED for power indication and a yellow LED as a light indicator. It includes a push-pull output circuit with a maximum output current of 100 mA and supports light/dark operate functions. The sensor is designed with a rectangular, plastic housing (ASA, PMMA) and a PMMA front optics, measuring 12.9 mm in width, 32.3 mm in height, and 23 mm in depth. It also features short circuit and reverse polarity protection, operates within a voltage supply range of 10 to 30 VDC, and is IP 67 rated for protection against dust and water ingress. Suitable for operating temperatures from -25 to +60 °C, it connects via an M8 4-pin connector, ensuring robust and reliable performance in diverse industrial environments.
- Type:
- Background suppression
- Sensing distance Tw:
- 30 200 mm
- Sensing range Tb:
- 15 200 mm
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in and IO-Link
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°Light source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
