Baumer

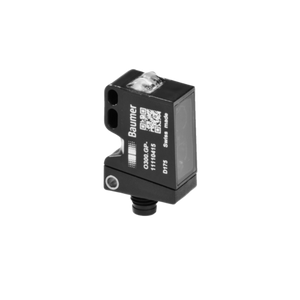

Baumer O300.GR-NV1T.72N 11135879

(No reviews yet) Write a Review

Write a Review

Baumer

Baumer O300.GR-NV1T.72N 11135879

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

11135879

UPC:

MPN:

11135879

Condition:

New

Type:

Background suppression

Sensing distance Tw:

30 … 300 mm

Sensing range Tb:

15 … 300 mm

Power on indication:

LED green

Light indicator:

LED yellow

Sensing distance adjustment:

qTeach

Suppression of reciprocal influence:

Yes

Alignment optical axis:

< 2°Light source=Pulsed red LED

Wave length:

630 nm

Response time / release time:

< 1 ms

Voltage supply range +Vs:

10 … 30 VDC

Current consumption max. (no load):

45 mA

Current consumption typ.:

30 mA

Voltage drop Vd:

<3 VDC

Output function:

Light / dark operate

Output circuit:

NPN complementary

Output current:

100 mA

Short circuit protection:

Yes

Reverse polarity protection:

Yes

Width / diameter:

12.9 mm

Height / length:

32.3 mm

Depth:

23 mm

Design:

Rectangular

Housing material:

Plastic (ASA, PMMA)

Front (optics):

PMMA

Connection types:

Connector M8 4 pin

Protection class:

IP 67

Operating temperature:

-25 … +60 °C

Datasheet:

View
