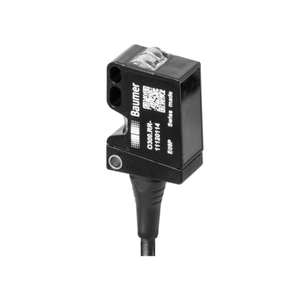

Baumer O300.RL-NV1T.72CU 11172800
Baumer
$343.50
The Baumer O300.RL-NV1T.72CU 11172800 is a retro-reflective sensor equipped with a pulsed red laser diode. It offers a nominal range of 6 meters and an actual range of 5 meters, with repeat accuracy of 0.2 mm at 500 mm. This sensor features a polarization filter, LED indicators for power and operation status, and qTeach for sensitivity adjustment. It operates within a voltage supply range of 11 to 30 VDC and has a quick response time of less than 0.1 ms. The sensor supports both light and dark operating modes with NPN complementary output circuit and can handle an output current of 100 mA. It includes protections against short circuits and reverse polarity. The compact, rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, with a housing made from durable plastic materials like ASA and PMMA. It connects via a 4-pin, 2-meter cable and operates in temperatures ranging from -10 to +60 °C. The sensor is rated IP 67 for protection against dust and water ingress.
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 5 m
- Nominal range Sn:
- 6 m
- Repeat accuracy:
- 0.2 mm at 500 mm
- Polarization filter:
- Yes
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 656 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Response time / release time:
- < 0.1 ms
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.5 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
