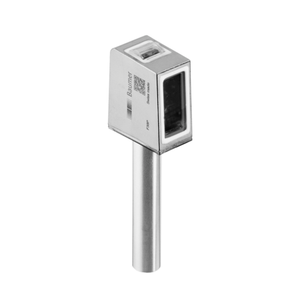

Baumer O300H.RL-GW1J.PVCV 11172813
Baumer
$505.00
The Baumer O300H.RL-GW1J.PVCV 11172813 is a retro-reflective sensor designed for hygienic applications, featuring a pulsed red laser diode with a wavelength of 656 nm. It offers a nominal range of 6 meters and an actual range of 5 meters, with repeat accuracy of 0.2 mm at 500 mm. This sensor includes a polarization filter, LED indicators for power and operation, and sensitivity adjustment via Teach-in and IO-Link. It is classified as Laser class 1 and ensures minimal reciprocal influence with an alignment optical axis under 2°. The response time is less than 0.1 ms, and it operates on a voltage supply range of 11 to 30 VDC. The sensor has a push-pull output circuit with light/dark operate functionality and supports a maximum output current of 100 mA. It features short circuit and reverse polarity protection, housed in a robust stainless steel 1.4404 (V4A) rectangular design with PMMA optics. Connection is facilitated through a 4-pin, 2-meter cable. The sensor operates within a temperature range of -10 to +60 °C and boasts an IP 68/69K protection class with proTect+ sealing, making it suitable for challenging environments. Approvals include Ecolab and adaptations from EHEDG.
- Type:
- Retro-reflective sensor
- Special type:
- Hygienic design
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 5 m
- Nominal range Sn:
- 6 m
- Repeat accuracy:
- 0.2 mm at 500 mm
- Polarization filter:
- Yes
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- Teach-in and IO-Link
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 656 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Approvals/certificates:
- Ecolab Adapted from EHEDG
- Response time / release time:
- < 0.1 ms
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.5 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 16.5 mm
- Height / length:
- 34.6 mm
- Depth:
- 28.7 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 68/69K & proTect+
- Datasheet:
- View
- Operating Manual:
- View
