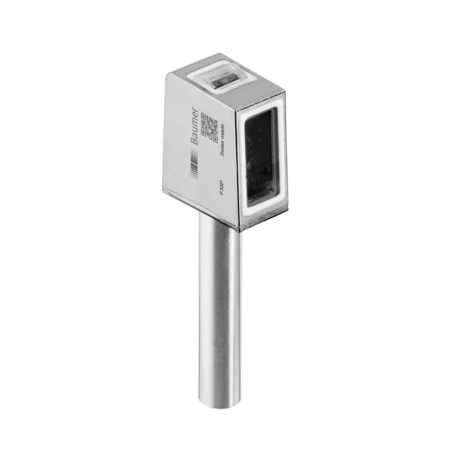

Baumer O300H.SL-GW1J.PVCV 11179007 is a light barrier with a hygienic design suitable for standard object detection. It features a background position Sde of 30 to 250 mm and a scanning range Sa of 90% to 85% Sde. The device offers high repeat accuracy of less than 0.1 mm at 100 mm and includes a green LED for power indication and a yellow LED as a light indicator. Sensing distance can be adjusted via Teach-in and IO-Link, with a focus distance of 400 mm. It includes features such as suppression of reciprocal influence, alignment of the optical axis within 2 degrees, and Ecolab approval adapted from EHEDG. The light source is a pulsed red laser diode of class 1 with a wavelength of 656 nm, and it has a quick response time/release time of less than 0.25 ms. Operating on a voltage supply range of 11 to 30 VDC, it has a maximum no-load current consumption of 30 mA and a typical consumption of 25 mA. The output function can operate in light/dark modes with a push-pull output circuit and an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's dimensions are 16.5 mm in width, 34.6 mm in height, and 28.7 mm in depth, with a rectangular stainless steel housing and PMMA front optics. It connects via a 4-pin, 2-meter cable and is rated IP 68/69K & proTect+ for high protection against environmental conditions, operating within a temperature range of -10 to +60 °C.
- Type:
- Light barrier
- Special type:
- Hygienic design
- Version:
- Standard object detection
- Background position Sde:
- 30 250 mm
- Scanning range Sa:
- 90% ... 85% Sde
- Repeat accuracy:
- < 0.1 mm at 100 mm
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in and IO-Link
- Distance to focus:
- 400 mm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Approvals/certificates:
- Ecolab Adapted from EHEDGLight source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 656 nm
- Response time / release time:
- < 0.25 ms
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.5 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 16.5 mm
- Height / length:
- 34.6 mm
- Depth:
- 28.7 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 68/69K & proTect+
- Operating temperature:
- -10 +60 °C
