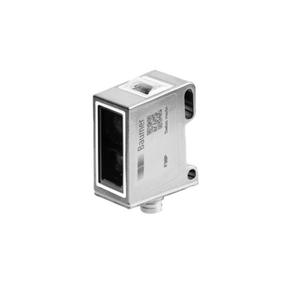

Baumer O300W.EL-GW1B.PVN 11181085 is a through beam sensor designed for washdown applications, featuring a receiver with an actual range of 40 m and a nominal range of 75 m. It includes a flashing light indicator for alignment or soiled lens detection, and LED indicators for power status and operation mode. The sensor offers sensitivity adjustment via qTeach or remote, and has an alignment optical axis of less than 2°. It is equipped with Ecolab approval, a response time of less than 0.49 ms, and operates within a voltage supply range of 10 to 30 VDC. The sensor has a maximum current consumption of 40 mA, typical consumption of 30 mA, and a voltage drop of less than 3 VDC. It features light/dark operate output functions, a push-pull output circuit, and supports an output current of 100 mA. Additional protections include short circuit and reverse polarity protection. The sensor's dimensions are 16.5 mm in width, 34.7 mm in length, and 28.2 mm in depth, with a rectangular stainless steel housing and PMMA front optics. It connects via an M8 4-pin connector and operates in temperatures ranging from -25 to +60 °C. The sensor is highly durable with an IP 68/69K rating and proTect+ sealing for enhanced protection against harsh conditions.
- Type:
- Through beam sensor
- Special type:
- Washdown design
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 40 m
- Nominal range Sn:
- 75 m
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach / remote
- Alignment optical axis:
- < 2°
- Approvals/certificates:
- Ecolab
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 16.5 mm
- Height / length:
- 34.7 mm
- Depth:
- 28.2 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 68/69K & proTect+
