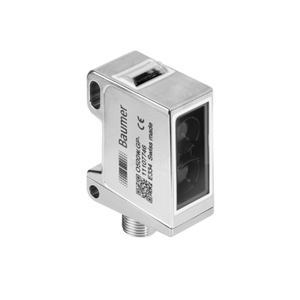

The Baumer O500W.RP-GW1B.PVO/H002 11125066 is a retro-reflective sensor designed for demanding environments, featuring a washdown design with a stainless steel 1.4404 (V4A) housing and PMMA front optics. It utilizes a pulsed PinPoint LED with a wavelength of 630 nm and includes a polarization filter to reduce false readings. The sensor offers an actual range of 7.5 m and a nominal range of 8 m. It is equipped with LED indicators for power and operation status, and sensitivity can be adjusted via remote teach-in. The device supports both light and dark operating modes with a push-pull output circuit and can handle output currents up to 100 mA. It includes protection against short circuits and reverse polarity, operates within a voltage supply range of 10 to 30 VDC, and consumes a maximum of 40 mA. The sensor's compact design measures 20.2 mm in width, 47.2 mm in height, and 37.7 mm in depth. It operates effectively in temperatures ranging from -25 to +60 °C and meets IP 68/69K & proTect+ standards for high-level protection against dust and water ingress, making it suitable for a variety of industrial applications.
- Type:
- Retro-reflective sensor
- Special type:
- Washdown design
- Light source:
- Pulsed PinPoint LED
- Actual range Sb:
- 7.5 m
- Nominal range Sn:
- 8 m
- Polarization filter:
- Yes
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- Teach-in: remote
- Wave length:
- 630 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1°
- Approvals/certificates:
- Ecolab
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 20.2 mm
- Height / length:
- 47.2 mm
- Depth:
- 37.7 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 68/69K & proTect+
- Datasheet:
- View
