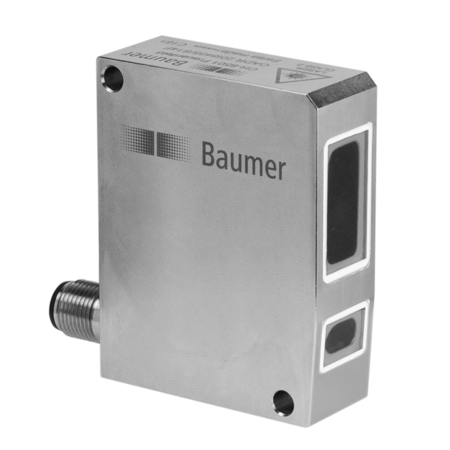

The Baumer OADR 20I6465/S14F 11040826 is a high-precision optical distance sensor designed for demanding environments. It features a measuring distance of 30 to 130 mm and a beam diameter that adjusts from 2 to 1 mm. This sensor is equipped with external adjustment capabilities and a teach-in range minimum of over 3 mm. It includes LED indicators for power status and lens soiling, and offers a resolution between 5 to 60 µm with a linearity error of ±0.015 to 0.2 mm. The sensor operates with a pulsed red laser diode at a wavelength of 650 nm and is classified as Laser class 2. It has a fast response time of less than 0.9 ms and operates on a voltage supply range of 12 to 28 VDC. The output is analog, providing signals from 4 to 20 mA or 0 to 10 VDC, and it supports a load resistance for analog current and voltage outputs. Additional features include short circuit and reverse polarity protection, a robust stainless steel housing, and a PMMA front optics. It is designed to withstand ambient light up to 40 kLux and operates within a temperature range of 0 to +50 °C. The sensor is highly durable with an IP 69K rating and proTect+ for enhanced protection against harsh washdown processes, making it ideal for food and beverage applications.
- Measuring distance Sd:
- 30 130 mm
- Special type:
- Washdown design
- Beam diameter:
- 2 1 mm
- Adjustment:
- External
- Teach-in range min.:
- > 3 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 5 60 µm
- Linearity error:
- ± 0.015 0.2 mm
- Beam type:
- Point
- Temperature drift:
- < 0,03 % Sde/K
- Approvals/certificates:
- EcolabLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 0.9 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output circuit:
- Analog
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Load resistance (analog I):
- < (+Vs - 6 V) / 0,02 A
- Load resistance (analog U):
- > 100 kOhm
- Output current:
- 100 mA
- Alarm output:
- PNP
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 20.3 mm
- Height / length:
- 65 mm
- Depth:
- 51 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 8 pin
- Ambient light immunity:
- < 40 kLux
- Protection class:
- IP 69K & proTect+
- Operating temperature:
- 0 +50 °C
- Datasheet:
- View
