Baumer OBDM 12N6920/S35A 10158754
Baumer

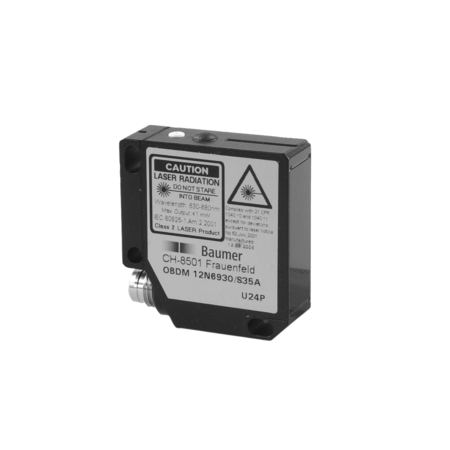

The Baumer OBDM 12N6920/S35A 10158754 is a high-precision sensor designed for min./max. analysis with a sensing distance of 16 to 120 mm and a minimum teach-in range of 0.3 mm. It features teach-in adjustment, green LED power indication, and a red LED output indicator. The sensor utilizes a pulsed red laser diode, classified as Laser class 2 with a wavelength of 650 nm and a beam diameter ranging from 0.5 to 0.2 mm. It boasts a rapid response time of less than 1 ms and operates on a voltage supply range of 12 to 28 VDC. The sensor has a maximum no-load current consumption of 80 mA and a typical consumption of 40 mA. It includes an NPN output circuit with an output current of 100 mA and a voltage drop of less than 2.8 VDC. Safety features include reverse polarity protection and short circuit protection. The sensor's compact design measures 12.4 mm in width, 37 mm in height, and 34.5 mm in depth, with a rectangular, die-cast zinc housing and glass front optics. It connects via an M8 4-pin connector and operates within a temperature range of 0 to +50 °C. The sensor is IP 67 rated, indicating high protection against dust and water ingress. For more detailed information, refer to the datasheet linked in the product description.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Through-beam type
- Actual range Sb:
- 140 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=3 mm
- Height / length (head):
- 17 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 24 mm
- Cable jacket diameter:
- 4 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 1 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 25 cm
- Datasheet:
- View
