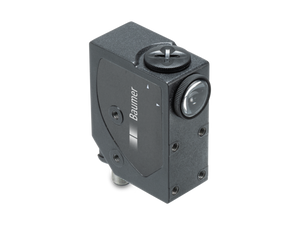

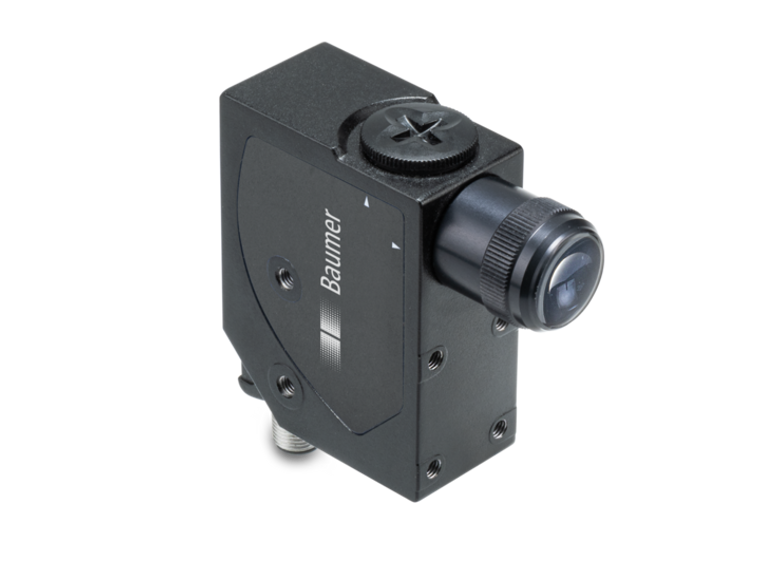

The Baumer OC60.CU-DLMT.7AF/H012 is a high-performance luminescence sensor designed for precise detection tasks. It features a UV LED light source with a wavelength of 375 nm and a vertical line beam, measuring 3 mm in height and 11 mm in width. The sensor offers a sensing distance between 20 mm and 40 mm and includes a focus distance of 24 mm. It is equipped with a fast response and release time of less than 0.25 ms, ensuring quick and reliable operations. This model provides multiple output functions including PNP, NPN, and an analog range from 0.75 to 5.5 VDC, with a maximum output current of 100 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor is housed in a durable aluminum casing with glass optics, measuring 31.9 mm in width, 60.2 mm in height, and 79 mm in depth. It also features a green LED for power indication and a yellow LED as an output indicator, with sensitivity adjustable via Teach-in. The OC60.CU-DLMT.7AF/H012 operates within a voltage supply range of 15 VDC to 30 VDC and consumes approximately 50 mA at 24 VDC. It is designed for harsh environments with an IP 67 protection rating and can operate between -10°C and +55°C, with storage temperatures ranging from -20°C to +70°C. Connectivity is facilitated through a rotatable M12 5-pin connector, ensuring easy integration into various setups.
- Type:
- Luminescence sensor
- Sensing distance Tw:
- 20 mm 40 mm
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Distance to focus:
- 24 mm
- Beam type:
- Line, vertical
- Beam height:
- 3 mm
- Beam width:
- 11 mmLight source=UV LED
- Wave length:
- 375 nm
- Response time / release time:
- < 0.25 ms
- Voltage supply range +Vs:
- 15 VDC 30 VDC
- Current consumption typ.:
- 50 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light operate
- Output circuit:
- PNP NPN Analog 0,75 ... 5,5 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 31.9 mm
- Height / length:
- 60.2 mm
- Depth:
- 79 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 5 pin, rotatable
- Protection class:
- IP 67
- Operating temperature:
- -10 +55 °C
- Storage temperature:
- -20 +70 °C
