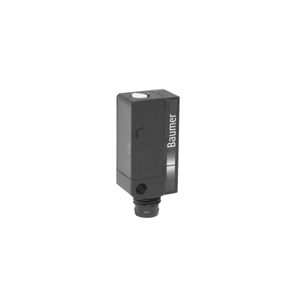

Baumer OEDK 10P5105 10165140

Baumer OEDK 10P5105 10165140

Baumer
SKU:
10165140
Availability:
Contact us to confirm availability and lead times.
$662.00
Condition:
New
Current Stock:
Description
The Baumer OEDK 10P5105 10165140 is a through beam laser sensor designed for precise object detection with an actual range of 8 meters and a nominal range of 10 meters. This receiver unit features a flashing light indicator for alignment or soiled lens detection and a yellow LED light indicator. It offers easy sensitivity adjustments via a 270° potentiometer and boasts a quick response time of less than 0.2 ms. Operating on a voltage supply range of 11 to 30 VDC, it has a typical current consumption of 16 mA and a voltage drop of less than 1.8 VDC. The sensor supports both light and dark operating modes with a PNP output circuit and can handle an output current of up to 100 mA. It includes safety features such as short circuit and reverse polarity protection. The compact, rectangular design measures 10.4 mm in width, 27 mm in height, and 14 mm in depth, with a housing made of ASA plastic and PMMA front optics. It connects via a 4-pin, 2-meter cable and operates within a temperature range of -10 to +50 °C. The sensor is IP 65 rated, indicating a high level of protection against dust and water. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_OEDK-10P5105_EN_20221110_DS.pdf?mediaPK=9056479313950).
Additional Information
Type:
Through beam laser sensor
Emitter / receiver:
Receiver
Actual range Sb:
8 m
Nominal range Sn:
10 m
Alignment / soiled lens indicator:
Flashing light indicator
Light indicator:
LED yellow
Sensitivity adjustment:
Potentiometer, 270°
Response time / release time:
< 0.2 ms
Voltage supply range +Vs:
11 … 30 VDC
Current consumption max. (no load):
16 mA
Current consumption typ.:
16 mA
Voltage drop Vd:
<1.8 VDC
Output function:
Light / dark operate
Output circuit:
PNP
Output current:
100 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Width / diameter:
10.4 mm
Height / length:
27 mm
Depth:
14 mm
Design:
Rectangular
Housing material:
Plastic (ASA)
Front (optics):
PMMA
Connection types:
Cable 4 pin, 2 m
Operating temperature:
-10 … +50 °C
Protection class:
IP 65
