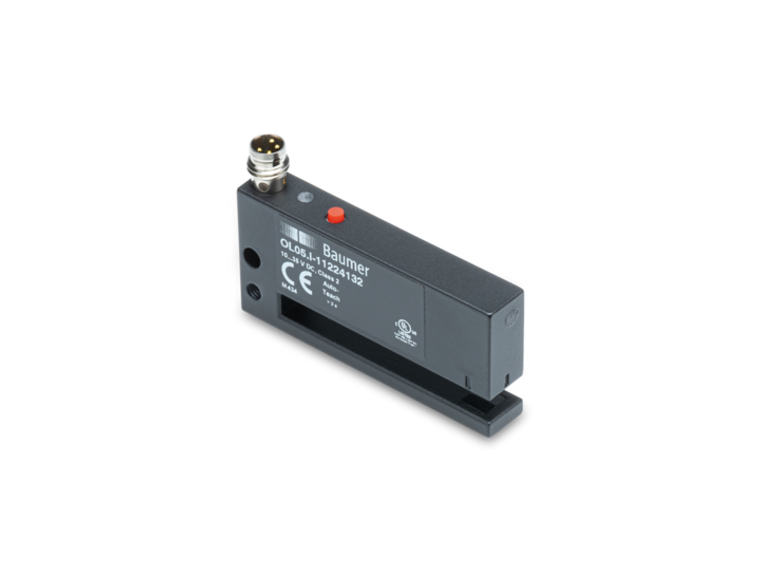

The Baumer OL05.I-GP1B.7WN is a high-performance light barrier designed for precise detection tasks. It features a repeat accuracy of 0.15 mm and a quick response time of 0.16 ms, suitable for applications with belt speeds up to 8 m/sec. This sensor can handle minimum label gaps greater than 2 mm and offers a hysteresis of 0.15 mm. It includes a teach-in button for easy sensitivity adjustment and uses a pulsed infrared diode with a wavelength of 880 nm. The device is equipped with a yellow LED light indicator and operates at a switching frequency of 3000 Hz. It supports a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 35 mA with no load. The output features are versatile with NO/NC adjustable functions and a push-pull output circuit. It ensures safety with short circuit and reverse polarity protection. The sensor's dimensions include a width of 60 mm, fork width of 5 mm, height of 28.5 mm, penetration depth of 50 mm, and depth of 10 mm, all housed in a robust die-cast zinc U-profile. It connects via an M8 4-pin connector and operates within a temperature range of -10 to +60 °C. The device is IP 67 rated, indicating high protection against dust and water ingress. For more detailed information, refer to the datasheet available [here](https://www.baumer.com/medias/__secure__/Baumer_OL05.I-GP1B.7WN_EN_20230508_DS.pdf?mediaPK=9068106121246).
- Type:
- Light barrier
- Repeat accuracy:
- 0.15 mm
- Response time / release time:
- 0.16 ms
- Belt speed:
- 8 m/sec
- Min. label gap:
- > 2 mm
- Hysteresis:
- 0.15 mm
- Sensitivity adjustment:
- Teach-in button
- Light source:
- Pulsed infrared diode
- Wave length:
- 880 nm
- Light indicator:
- LED yellow
- Switching frequency:
- 3000 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output function:
- NO / NC adjustable
- Output circuit:
- Push-pull
- Voltage drop Vd:
- <2 VDC
- Output current:
- <100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 60 mm
- Fork width Sb:
- 5 mm
- Height / length:
- 28.5 mm
- Penetration depth:
- 50 mm
- Depth:
- 10 mm
- Design:
- U profile
- Housing material:
- Die-cast zinc
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
