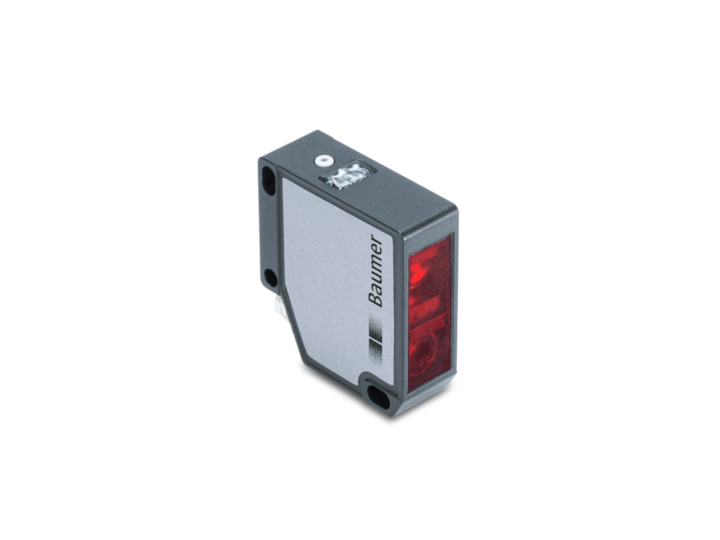

The Baumer OM20-P0026.HV.AIN 11232064 is a high-precision distance measuring sensor with a measuring distance of 16 to 26 mm and a 10 mm measuring range. It features Teach-in adjustment via button or external control, and is equipped with multiple LED indicators for power, output, and Ethernet connection. The sensor offers exceptional repeat accuracy of 4 to 5 µm and a linearity error of ±0.13% Mr. It utilizes a pulsed red laser diode with a wavelength of 660 nm and operates within a laser class 2 safety standard. The device supports a high measuring frequency of 5000 Hz and has a quick response delay of 0.4 ms. It is designed for durability with a die-cast zinc housing, glass optics, and is rated IP67 for protection against dust and water ingress. The sensor operates effectively in temperatures ranging from -10 to +50 °C and includes features like short circuit and reverse polarity protection. Connection is facilitated via an M8 4-pin connector, ensuring easy integration into various systems.
- Type:
- Distance measuring
- Measuring distance Sd:
- 16 26 mm
- Measuring range Mr:
- 10 mm
- Adjustment:
- Teach-in: button / external
- Power on indication:
- LED green
- Output indicator:
- LED red
- Ethernet link indication:
- LED blue
- Repeat accuracy:
- 4 5 µm
- Linearity error:
- ± 0.13 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,01 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Maximum pulse power:
- 1.6 mW
- Pulse duration:
- 0.001 ... 1.5 ms
- Pulse period:
- 0.2 ... 3.4 ms
- Response delay:
- 0.4 ms
- Measuring frequency:
- 5000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- Analog
- Output signal:
- 4 ... 20 mA
- Load resistance:
- < (+Vs - 9 V) / 0.02 A
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13 mm
- Height / length:
- 37 mm
- Depth:
- 34.5 mm
- Design:
- Rectangular, front view
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Weight:
- 41 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
