Baumer OM30-L0100.HV.AUN 11233969
Baumer

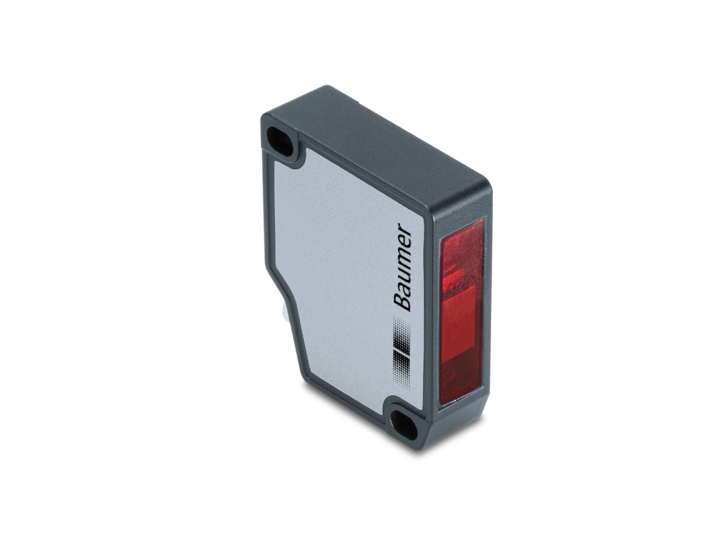

The Baumer OM30-L0100.HV.AUN 11233969 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance of 50 to 100 mm and a repeat accuracy of 8 to 24 µm. The sensor uses a pulsed red laser diode with a wavelength of 660 nm and operates within a laser class 2 safety standard. It offers a fast response delay of 0.4 ms and a high measuring frequency of 5000 Hz. The device is equipped with both green and red LEDs for power and output indication, respectively, and includes teach-in adjustment via button or external control. The output signal is analog, ranging from 0 to 10 VDC, and the sensor supports a voltage supply range of 12 to 28 VDC. It is built with a robust die-cast zinc housing, glass optics, and an IP67 protection class, making it suitable for harsh environments. The sensor also features shock and vibration resistance according to IEC standards, ensuring reliability and durability in challenging conditions.
- Type:
- Distance measuring
- Measuring distance Sd:
- 50 100 mm
- Measuring range Mr:
- 50 mm
- Adjustment:
- Teach-in: button / external
- Power on indication:
- LED green
- Output indicator:
- LED red
- Repeat accuracy:
- 8 24 µm
- Linearity error:
- ± 0.13 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,02 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Maximum pulse power:
- 1.2 mW
- Pulse duration:
- 0.001 ... 1.7 ms
- Pulse period:
- 0.2 ... 3.4 ms
- Response delay:
- 0.4 ms
- Measuring frequency:
- 5000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- Analog
- Output signal:
- 0 ... 10 VDC
- Load resistance:
- > 100 kOhm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.6 mm
- Height / length:
- 49 mm
- Depth:
- 40.3 mm
- Design:
- Rectangular, front view
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Weight:
- 67 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
- Datasheet:
- View
