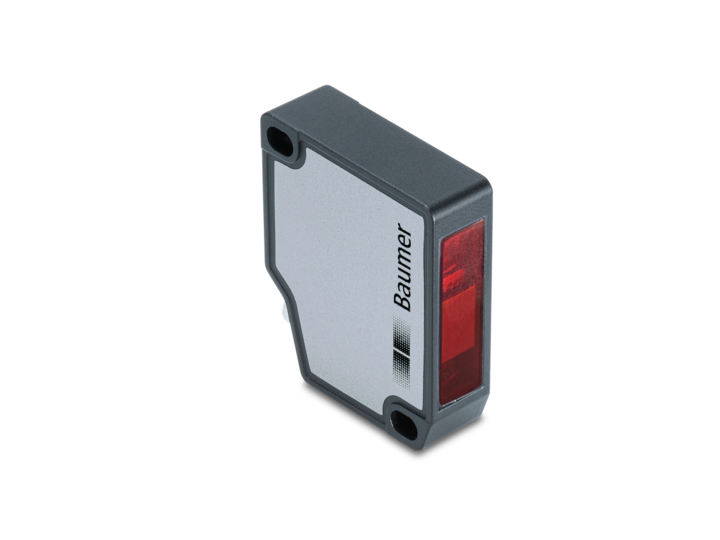

The Baumer OM30-P0350.HV.AIN 11232069 is a high-precision distance measuring sensor with a measuring distance of 50 to 350 mm and a measuring range of 300 mm. It features Teach-in adjustment via button or external control, and visual indicators including a green LED for power and a red LED for output status. The sensor offers repeat accuracy between 10 and 240 µm and linearity errors of ±0.14% to ±0.18% across the measuring range. It utilizes a pulsed red laser diode with a wavelength of 660 nm, classified as Laser class 2, and operates with a maximum pulse power of 2 mW. The sensor supports a high measuring frequency of 5000 Hz and operates efficiently with a voltage supply range of 12 to 28 VDC. It is designed with a robust die-cast zinc housing, glass optics front, and is equipped with an M8 4-pin connector. The compact device measures 13.6 mm in width, 49 mm in height, and 40.3 mm in depth, weighing 67 g. It is highly durable, offering shock and vibration resistance, and operates reliably within a temperature range of -10 to +50 °C. The OM30-P0350.HV.AIN is ideal for industrial applications requiring precise distance measurement and is protected against short circuits, reverse polarity, and ambient light up to 100 kLux. It is IP67 rated, ensuring protection against dust and water ingress.
- Type:
- Distance measuring
- Measuring distance Sd:
- 50 350 mm
- Measuring range Mr:
- 300 mm
- Adjustment:
- Teach-in: button / external
- Power on indication:
- LED green
- Output indicator:
- LED red
- Repeat accuracy:
- 10 240 µm
- Linearity error:
- ± 0.14 % Mr , 50 ... 200 mm ± 0.18 % Mr , 50 ... 350 mm
- Beam type:
- Point
- Temperature drift:
- 0,05 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Maximum pulse power:
- 2 mW
- Pulse duration:
- 0.001 ... 1.2 ms
- Pulse period:
- 0.2 ... 3.4 ms
- Response delay:
- 0.4 ms
- Measuring frequency:
- 5000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- Analog
- Output signal:
- 4 ... 20 mA
- Load resistance:
- < (+Vs - 9 V) / 0.02 A
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.6 mm
- Height / length:
- 49 mm
- Depth:
- 40.3 mm
- Design:
- Rectangular, front view
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Weight:
- 67 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
- Datasheet:
- View
