Description

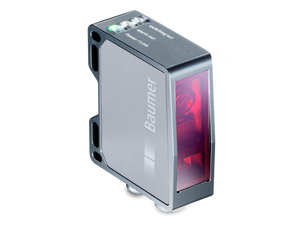

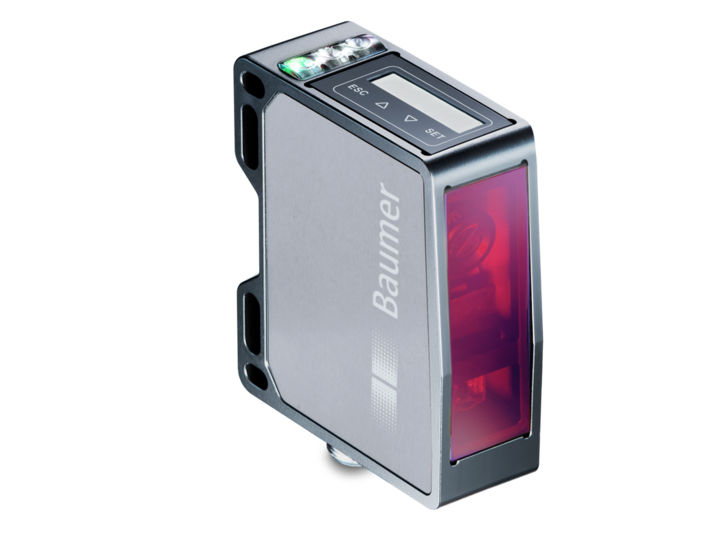

The Baumer OM70-P1000.HV1000.VI 11199089 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance of 100 to 1000 mm and a measuring range of 900 mm with a sweet spot at 1000 mm. The device offers high resolution (3 to 63 µm) and repeat accuracy (1 to 32 µm), ensuring reliable measurements. It is equipped with a touch display and RS485 for easy adjustment, and uses a pulsed red laser diode with a wavelength of 660 nm, falling under Laser class 2. The sensor operates at a high measuring frequency of 2500 Hz and has a quick response delay of 0.8 ms. It supports a voltage supply range of 15 to 28 VDC and includes multiple outputs such as analog and RS 485, with output signals of 4 to 20 mA or 0 to 10 VDC. The device is built to withstand harsh environments with IP 67 protection, operating temperatures from -10 to +50 °C, and is resistant to vibration and shock as per IEC standards. The compact aluminum housing with glass optics and an M12 8-pin connector ensures durability and ease of integration into various systems.
