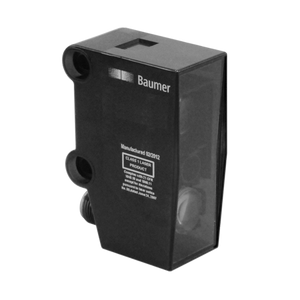

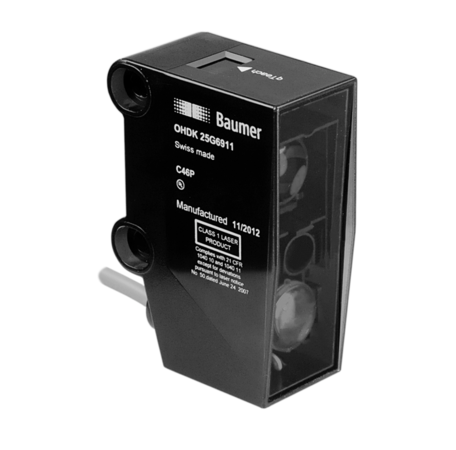

Baumer ONDK 25G6911 11079993
Baumer
$469.80
The Baumer ONDK 25G6911 11079993 is a standard object detection light barrier equipped with a pulsed red laser diode for precise sensing. It features a background position from 100 to 1900 mm and a scanning range of 97% to 83% of the background position. The device includes a green LED for power indication and a yellow LED for light indication, with a flashing light indicator for alignment or soiled lens detection. Sensing distance can be adjusted via Teach-in, and the beam diameter ranges from 3.7 to 22 mm. It operates with a laser class 1 safety level and a wavelength of 656 nm. The response time is less than 10 ms, and it supports a voltage supply range of 10 to 30 VDC with a maximum current consumption of 80 mA. The output function can operate in light or dark conditions, and it features a push-pull output circuit with a maximum output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor has a compact, rectangular design with dimensions of 23.4 mm in width, 63 mm in height, and 45 mm in depth, and is made from durable plastic (SAN LURAN 378P) with a PMMA front optics. It offers a connection via a 2-meter cable and is rated IP 67 for protection against dust and water, making it suitable for a variety of industrial applications. The operating temperature range is from 0 to +50 °C, and it can be stored from -10 to +70 °C.
- Type:
- Light barrier
- Version:
- Standard object detection
- Background position Sde:
- 100 1900 mm
- Scanning range Sa:
- 97% ... 83% Sde
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in
- Beam diameter:
- 3.7 22 mmLight source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 656 nm
- Response time / release time:
- < 10 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 80 mA
- Voltage drop Vd:
- <3.5 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 23.4 mm
- Height / length:
- 63 mm
- Depth:
- 45 mm
- Design:
- Rectangular
- Housing material:
- Plastic (SAN LURAN 378P)
- Front (optics):
- PMMA
- Connection types:
- Cable, L=2 m
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
- Storage temperature:
- -10 +70 °C
- Datasheet:
- View
