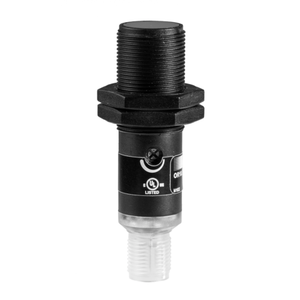

The Baumer OR18.RR.T-PW1P.71O 11157788 is a retro-reflective sensor designed for transparency object detection. It features a pulsed red LED light source with a wavelength of 660 nm and includes a polarization filter. This sensor offers a nominal range of 0.8 m and an actual range of 0.5 m. It is equipped with a yellow LED output indicator and sensitivity can be adjusted via a 270° potentiometer. The sensor supports both light and dark operating modes with a PNP output circuit and can handle an output current of 100 mA. It includes short circuit and reverse polarity protection, operates within a voltage supply range of 12 to 30 VDC, and has a maximum current consumption of 40 mA. The cylindrical threaded design measures 18 mm in width and 67.2 mm in length, constructed from ABS TERLURAN plastic with a PMMA front optics. It features an M12 4-pin connector for connectivity, operates in temperatures ranging from -25 to +55 °C, and is rated IP 67 for protection against dust and water ingress.
- Type:
- Retro-reflective sensor
- Version:
- Transparency object detection
- Light source:
- Pulsed red LED
- Actual range Sb:
- 0.5 m
- Nominal range Sn:
- 0.8 m
- Polarization filter:
- Yes
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Potentiometer, 270°
- Wave length:
- 660 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 67.2 mm
- Design:
- Cylindrical threaded
- Housing material:
- Plastic (ABS TERLURAN)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Operating temperature:
- -25 +55 °C
- Protection class:
- IP 67
