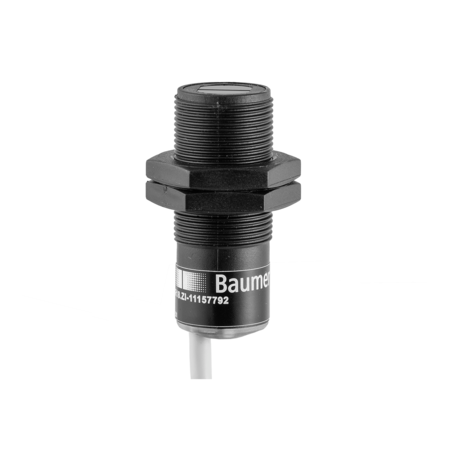

The Baumer OR18.ZI-NW1Z.71OV/0010_B012 11157793 is an intensity difference sensor with a sensing distance of less than 80 mm. It features a pulsed infrared diode light source with a wavelength of 880 nm and a fast response time of less than 1 ms. The sensor has no sensing distance adjustment but includes suppression of reciprocal influence. It operates with a voltage supply range of 12 to 30 VDC and has a typical current consumption of 30 mA. The output function can be set to light or dark operate, and it includes both short circuit and reverse polarity protection. The sensor is housed in a cylindrical threaded plastic body with a PMMA front optics, measures 18 mm in width and 44.8 mm in length, and is equipped with a flylead connector M12 4 pin. It is rated IP 67 for protection against dust and water ingress and can operate in temperatures ranging from -25 to +55 °C.
- Type:
- Intensity difference
- Sensing distance Tw:
- < 80 mm
- Alignment / soiled lens indicator:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- No
- Suppression of reciprocal influence:
- YesLight source=Pulsed infrared diode
- Wave length:
- 880 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 44.8 mm
- Design:
- Cylindrical threaded
- Housing material:
- Plastic (ABS TERLURAN)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M12 4 pin, L=100 mm
- Protection class:
- IP 67
- Operating temperature:
- -25 +55 °C
