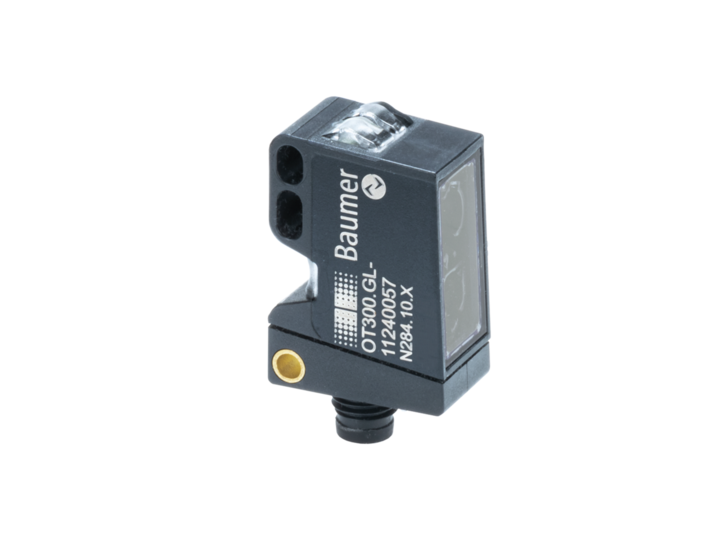

The Baumer OT300.SL-NDNVT.72N is a high-performance light barrier featuring Time of Flight technology with a sensing distance ranging from 400 to 1800 mm. It includes a pulsed red laser diode light source, operating within a laser class of 1 and a wavelength of 680 nm. This device offers quick response and release times of less than 8 ms and is equipped with both green and yellow LEDs for power and output indication, respectively. The unit allows for easy sensing distance adjustment via qTeach and has a focused beam type with an alignment accuracy of less than 2 degrees. It supports a voltage supply range of 12 to 30 VDC and includes safety features such as short circuit and reverse polarity protection. The sensor's robust design is encapsulated in a plastic housing with IP67 protection, making it suitable for harsh environments, and it can operate within a temperature range of -20 to +50 °C. Connection is facilitated through an M8 4-pin connector, ensuring easy integration into various systems.
- Type:
- Light barrier
- Version:
- Time of Flight
- Sensing distance Tw:
- 400 1800 mm
- Scanning range Sa:
- 85% ... 80% Sde
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Distance to focus:
- 700 mm
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Point
- Alignment optical axis:
- < 2°Light source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 680 nm
- Response time / release time:
- < 8 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 60 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Dark operate, complementary
- Output circuit:
- NPN
- Output current:
- 50 mA, sum of all outputs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -20 +50 °C
- Storage temperature:
- -40 +70 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction
- Datasheet:
- View
