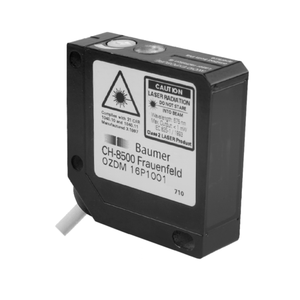

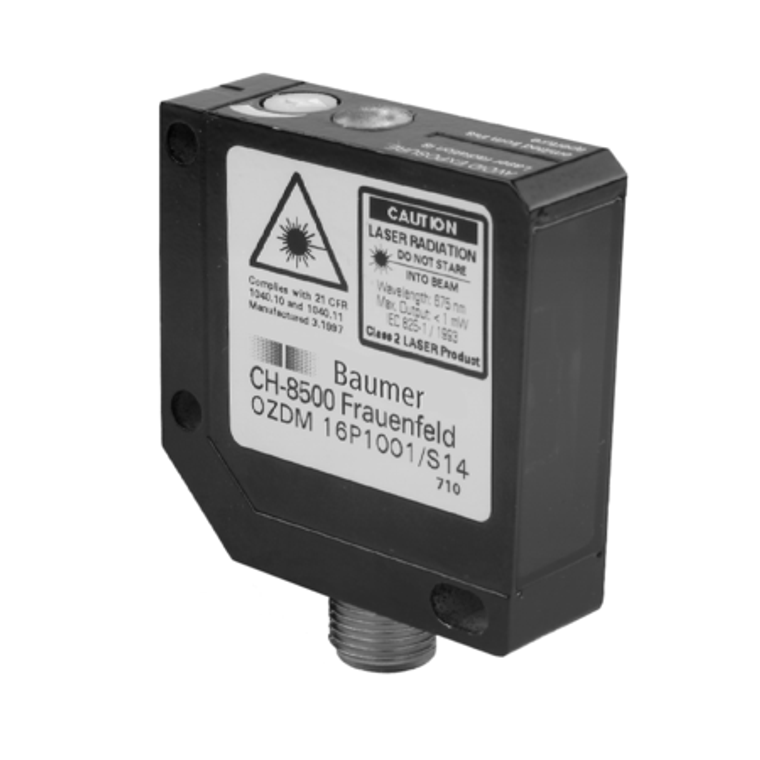

The Baumer OZDM 16N1001/S14 10133599 is a diffuse contrast sensor designed for precise detection tasks with a sensing distance of up to 250 mm and an optimal operating range of 40 to 80 mm. It features a pulsed red laser diode light source, with a laser class of 1 and a wavelength of 650 nm, ensuring high visibility and safety. The sensor offers exceptional repeat accuracy of less than 0.1 mm at laser focus and can detect remission differences greater than 8% on grey surfaces. It is equipped with a yellow LED output indicator, a 14-turn potentiometer for sensitivity adjustment, and a quick response time of less than 0.05 ms. The sensor operates on a voltage supply range of 12 to 30 VDC and includes protection features such as short circuit and reverse polarity protection. Its robust die-cast zinc housing, glass optics front, and IP67 protection class make it suitable for challenging industrial environments. The sensor's compact dimensions (15.4 mm width, 50 mm height and depth) and M12 4-pin connector ensure easy integration into various applications.
- Type:
- Diffuse contrast sensor
- Sensing distance Tw:
- < 250 mm
- Optimum operating distance:
- 40 80 mm
- Detectable remission difference (on grey):
- > 8 %
- Repeat accuracy:
- < 0.1 mm at laser focus
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Potentiometer, 14 turn
- Distance to focus:
- 80 mmLight source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 650 nm
- Response time / release time:
- < 0.05 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 65 mA
- Current consumption typ.:
- 60 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light operate
- Output circuit:
- NPN
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 15.4 mm
- Height / length:
- 50 mm
- Depth:
- 50 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
