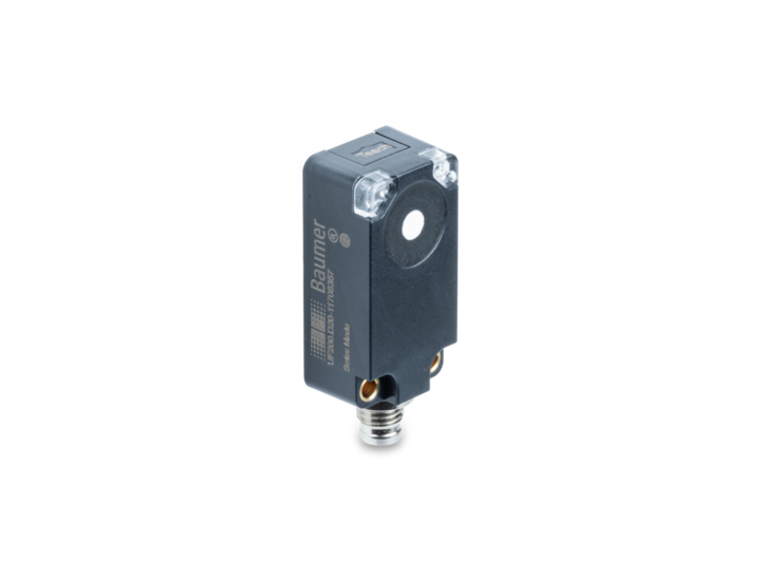

The Baumer UF200.D25-IA1B.72N is an ultrasonic sensor with a scanning range of 10 to 250 mm, featuring a typical hysteresis of 4% at the far limit and a repeat accuracy of 0.5 mm. It offers high resolution under 0.3 mm and a quick response time as low as 10 ms. This sensor is designed to minimize temperature and power-up drifts, ensuring reliable operation with a sonic frequency of 370 kHz. It supports both qTeach and line-Teach for easy adjustment and includes LED indicators for power and operation status. The sensor operates on a 12 to 30 VDC supply, with a typical current consumption of 11 mA, and includes output signals of 4 to 20 mA or 20 to 4 mA. It features short circuit and reverse polarity protection, housed in a durable plastic casing (ASA, PMMA) with dimensions of 20.5 mm width, 41 mm height, and 15 mm depth. The connection is facilitated via an M8 4-pin connector. Suitable for harsh environments, it operates between -25 to +65 °C, is storage stable from -25 to +75 °C, and is rated IP 67 for dust and water resistance.
- Scanning range Sd:
- 10 250 mm
- Scanning range close limit Sdc:
- 10 250 mm
- Scanning range far limit Sde:
- 10 250 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton/toff standard:
- < 25 ms
- Response time ton/toff min:
- < 10 ms
- Temperature drift:
- < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 370 kHz
- Adjustment:
- qTeach, line-Teach
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 11 mA
- Output circuit:
- Current output
- Output signal:
- 4 ... 20 mA / 20 ... 4 mA
- Load resistance:
- < (+Vs - 10V) / 0,02 A
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
