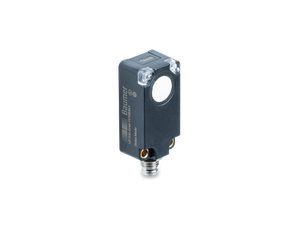

The Baumer UF200.DA0-UAMJ.72CU is an ultrasonic sensor with a scanning range of 20 to 1000 mm, featuring IO-Link dual channel technology for enhanced communication and configuration. It offers high precision with a repeat accuracy of 0.5 mm and resolution under 0.3 mm. The sensor's response time is exceptionally quick, less than 60 ms standard and can be minimized to 24 ms. It is designed to minimize temperature and power-up drifts, ensuring reliable operation after a brief 15-minute warm-up period. Operating at a sonic frequency of 220 kHz, it includes versatile adjustment options like qTeach, line-Teach, and IO-Link. Visual indicators are provided by yellow and green LEDs for operational status and power, respectively. The sensor supports a voltage supply range of 12 to 30 VDC and has a typical current consumption of 12 mA. It offers a voltage output signal (0 to 10 V / 10 to 0 V) and is designed to handle load resistances over 10 kOhm. Safety features include short circuit and reverse polarity protection. The rectangular housing is made from durable plastic materials (ASA, PMMA), measuring 20.5 mm in width, 41 mm in height, and 15 mm in depth, and it connects via a 4-pin, 2-meter cable. Suitable for harsh environments, it operates within a temperature range of -25 to +65 °C, is storage capable from -25 to +75 °C, and is rated IP 67 for dust and water resistance.
- Scanning range Sd:
- 20 1000 mm
- Scanning range close limit Sdc:
- 20 1000 mm
- Scanning range far limit Sde:
- 20 1000 mm
- Version:
- IO-Link dual channel
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton/toff standard:
- < 60 ms
- Response time ton/toff min:
- < 24 ms
- Temperature drift:
- < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 220 kHz
- Adjustment:
- qTeach, line-Teach, IO-Link
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 12 mA
- Output circuit:
- Voltage output
- Baud rate:
- 38.4 kBaud (COM 2)
- Output signal:
- 0 ... 10 V / 10 ... 0 V
- Load resistance:
- > 10 kOhm
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
