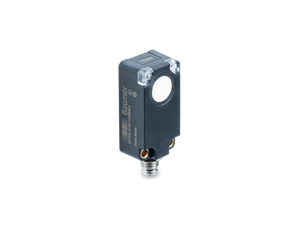

Baumer UF200.EA0-GP2J.72N
Baumer
$300.30
The Baumer UF200.EA0-GP2J.72N is a high-performance ultrasonic sensor designed as a receiver with an IO-Link interface. It offers a scanning range of 0 to 1000 mm and can detect objects as small as 4 cm² at 50 mm. This sensor features a repeat accuracy of 1 mm and a response and release time of less than 2 ms, ensuring quick and reliable operation. It operates at a sonic frequency of 310 kHz and includes helpful alignment aids such as a flashing light indicator and a green LED for power indication. The sensor is equipped with qTeach, line-Teach, and IO-Link for easy adjustment. It supports a voltage supply range of 12 to 30 VDC and has a typical current consumption of 16 mA. The output circuit is push-pull with an output current of less than 100 mA. It also includes safety features like short circuit and reverse polarity protection. The rectangular housing is made from durable plastic materials (ASA, PMMA) and measures 20.5 mm in width, 41 mm in height, and 15 mm in depth. It connects via an M8 4-pin connector and is designed to operate in temperatures ranging from -25 to +65 °C, with a protection class of IP 67, making it suitable for a variety of industrial applications.
- Emitter / receiver:
- Receiver
- Scanning range Sd:
- 0 1000 mm
- Version:
- IO-Link
- Object size (at Sd:
- 50 mm)=> 4 cm²
- Hysteresis typ.:
- 5 % Sde
- Repeat accuracy:
- 1 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 2 ms
- Release time toff:
- < 2 ms
- Adjustment:
- qTeach, line-Teach, IO-Link
- Sonic frequency:
- 310 kHz
- Alignment aid:
- Light indicator flashing
- Power on indication:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 16 mA
- Output circuit:
- Push-pull
- Output current:
- <100 mA
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
- Operating Manual:
- View
