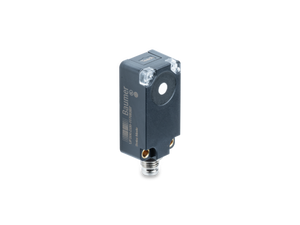

The Baumer UF200.P50-GP1J.72N is an ultrasonic sensor with a scanning range of 15 to 500 mm. It features IO-Link communication and a multiplex version for enhanced connectivity and integration. The sensor offers high precision with a repeat accuracy of 0.5 mm and a hysteresis of 4% at the far limit. It is designed to minimize temperature and power-up drifts, ensuring reliable performance with a response time as low as 16 ms. Operating at a sonic frequency of 290 kHz, it includes qTeach, line-Teach, and IO-Link for easy adjustment. The sensor is equipped with LED indicators for power and operation status, and it operates within a voltage supply range of 12 to 30 VDC. Its robust plastic housing (ASA, PMMA) and IP67 protection class make it suitable for harsh environments. The sensor dimensions are 20.5 mm in width, 41 mm in length, and 15 mm in depth, and it connects via an M8 4-pin connector. Suitable for temperatures ranging from -25 to +65 °C, it includes features like short circuit and reverse polarity protection, ensuring durability and safety in industrial applications.
- Scanning range Sd:
- 15 500 mm
- Scanning range close limit Sdc:
- 15 500 mm
- Scanning range far limit Sde:
- 15 500 mm
- Version:
- IO-Link Multiplex version
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Response time ton/toff min:
- < 16 ms
- Response time ton/toff standard:
- < 40 ms
- Sonic frequency:
- 290 kHz
- Adjustment:
- qTeach, line-Teach, IO-Link
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 12 mA
- Output circuit:
- Push-pull
- Output current:
- <100 mA
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
