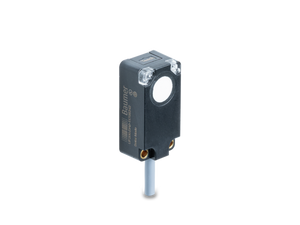

The Baumer UF200.TB0-ZZZX.72N is an ultrasonic emitter with a scanning range of up to 2000 mm and operates at a sonic frequency of 220 kHz. It features a green LED power indication and is powered by a 12 to 30 VDC supply, consuming a typical current of 12 mA. The device includes short circuit and reverse polarity protection, ensuring reliable operation. Housed in a rectangular, durable plastic body (ASA, PMMA), it measures 20.5 mm in width, 41 mm in height, and 15 mm in depth. The emitter connects via an M8 4-pin connector and operates within a temperature range of -25 to +65 °C. It is designed to withstand harsh environments with an IP 67 protection class. For more details, refer to the datasheet and operating manual available online.
- Emitter / receiver:
- Emitter
- Scanning range Sd:
- 0 2000 mm
- Sonic frequency:
- 220 kHz
- Power on indication:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 12 mA
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
- Operating Manual:
- View
